• Country
• Soviet Union

• Manufacturer / Brand
• NPO Delta, Research Institute of Microelectronics; Moscow

• Year
• 1984 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 359362

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / AA: 3 x 1.5 ; AG13: 1х1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch

• Power out
• 0.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

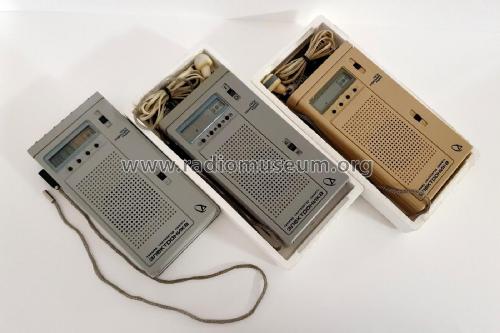

• Model: Электроника 26-01 Радиоприёмник с часами и будильником Elektronika 26-01 FM/AM Radio with Alarm/Clock - NPO Delta, Research Institute

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 72 x 142 x 22 mm / 2.8 x 5.6 x 0.9 inch

• Notes

• The radio receiver "Elektronika 26-01" is assembled on five integrated circuits and is controlled by a microprocessor. The receiver provides: automatic and manual search for radio stations in the MW and VHF ranges based on frequency synthesis; automatic switching on and off at a specified time; storing 7 radio stations in each range; counting time with an accuracy of up to a second; operation in alarm mode; light and sound signaling during the search for radio programs.

• Net weight (2.2 lb = 1 kg)
• 0.230 kg / 0 lb 8.1 oz (0.507 lb)

• Price in first year of sale
• 90.45 SUR

• Author
• Model page created by Nikolai Galak. See "Data change" for further contributors.
