• Country
• France

• Manufacturer / Brand
• Océanic, ITT Océanic; Paris

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100418

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

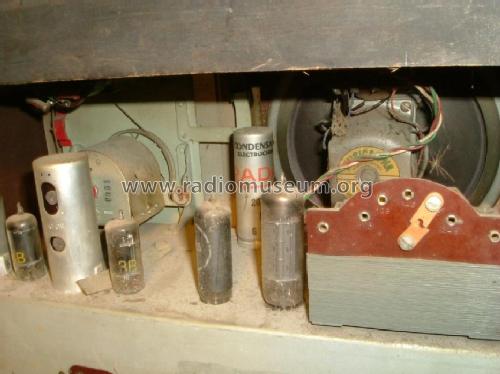

• 6BE6 6BA6 6AV6 6AQ5 EM34 or 6AF7G 6X4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

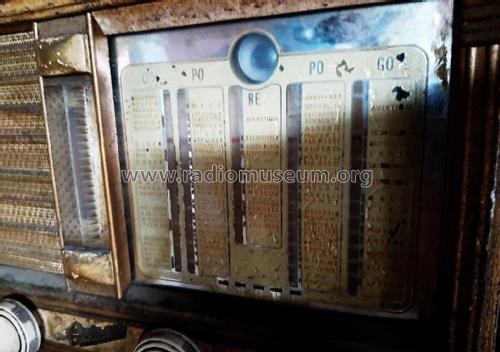

• Model: Le Corsaire 55 - Océanic, ITT Océanic; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 250 x 210 mm / 15.7 x 9.8 x 8.3 inch

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 19744)

• Author
• Model page created by John Koster. See "Data change" for further contributors.
