Pilote EM81
Océanic, ITT Océanic; Paris
- Country
- France
- Manufacturer / Brand
- Océanic, ITT Océanic; Paris
- Year
- 1959 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 248808
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 115; 127; 145; 220; 245 Volt
- Loudspeaker

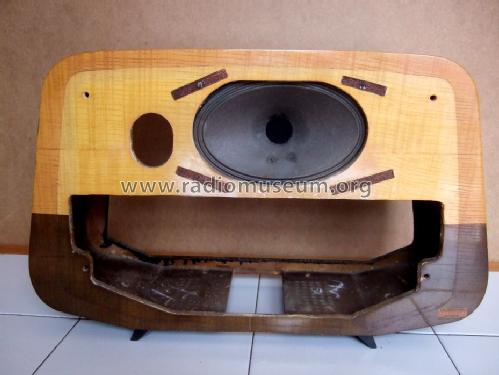

- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Pilote [EM81] - Océanic, ITT Océanic; Paris
- Shape

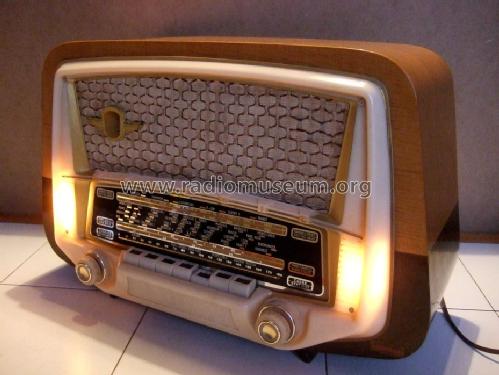

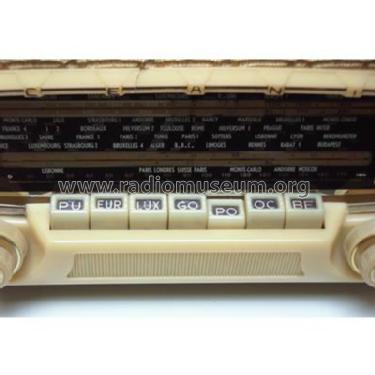

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 450 x 280 x 200 mm / 17.7 x 11 x 7.9 inch
- Notes
-

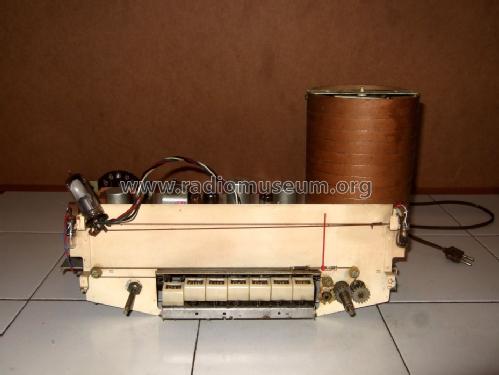

Équipés de deux touches pré- réglées sont ajustable à la derrière du poste avec deux condensateurs. Cadre tournante à l’aire.
Voir aussi Océanic Pilote avec oeil magique EM34.
- Net weight (2.2 lb = 1 kg)
- 7.4 kg / 16 lb 4.8 oz (16.3 lb)
- Author
- Model page created by Bekir Yurdakul. See "Data change" for further contributors.
