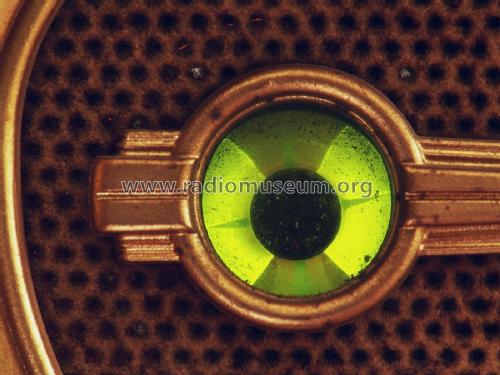

Surcouf avec cadre - EM34

Océanic, ITT Océanic; Paris

  • Year
  • 1956 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 348499

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Surcouf [avec cadre - EM34] - Océanic, ITT Océanic; Paris
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 475 x 310 x 210 mm / 18.7 x 12.2 x 8.3 inch
  • Notes
  • Dunkle Skala. Schallwand samtig beflocktes Lochmetall. Eingebaute Rahmenantenne, drehbar über flexible Welle. 2 Kurzwellenbereiche: ~15-50m und ein gespreiztes 47 - ~50m-Band.

  • Net weight (2.2 lb = 1 kg)
  • 7.2 kg / 15 lb 13.7 oz (15.859 lb)
  • Author
  • Model page created by Wilhelm Siepe. See "Data change" for further contributors.
