• Country
• France

• Manufacturer / Brand
• Ondia (Le Matériel); Boulogne-sur-Mer, Paris

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75013

• • alternative name: Le Matériel Ondia - see Ondia

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 42 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• 110-250 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

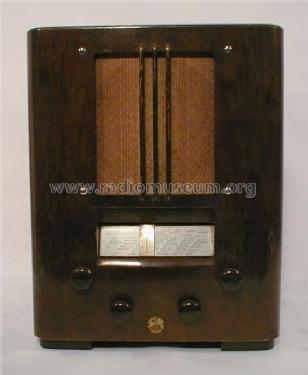

• Model: 151 - Ondia Le Matériel; Boulogne-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 340 x 420 x 310 mm / 13.4 x 16.5 x 12.2 inch

• Net weight (2.2 lb = 1 kg)
• 13.2 kg / 29 lb 1.2 oz (29.075 lb)

• Source of data
• Le grand livre de la TSF

• Author
• Model page created by Patrice Zeissloff. See "Data change" for further contributors.

• Other Models

• Here you find 125 models, 104 with images and 54 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
