- Country
- France
- Manufacturer / Brand
- Ondia (Le Matériel); Boulogne-sur-Mer, Paris
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62737
-
- alternative name: Le Matériel Ondia - see Ondia
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org

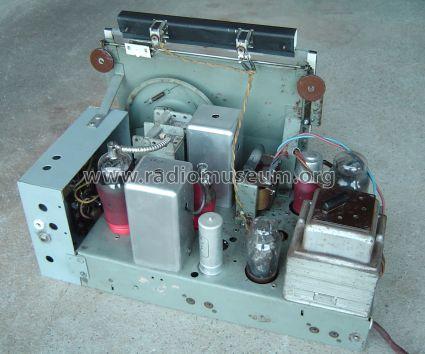

- Model: 201 A [EK3] - Ondia Le Matériel; Boulogne-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 280 x 260 mm / 21.3 x 11 x 10.2 inch
- Notes
-
3 gammes d'ondes. Sélectivité variable à 3 positions.
- Price in first year of sale
- 1,575.00 FRF
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in
- Schémathèque Toute la Radio (STR) (No. 446)
- Literature/Schematics (1)
- -- Original prospect or advert
- Literature/Schematics (2)
- - - Manufacturers Literature (Tarif 01.08.1938)
