- Country
- France
- Manufacturer / Brand
- Ondia (Le Matériel); Boulogne-sur-Mer, Paris
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 240749
-
- alternative name: Le Matériel Ondia - see Ondia

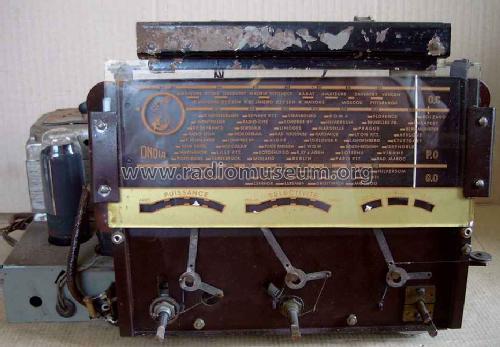

Chassis Nr 15657
Gitterzuführung ersetzt
Kondensatoren teilweise neu
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 201 [ECH3] - Ondia Le Matériel; Boulogne-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 295 x 275 mm / 21.3 x 11.6 x 10.8 inch
- Notes
-
Preparé pour Système Antiparasite Ondia.
- Net weight (2.2 lb = 1 kg)
- 11.2 kg / 24 lb 10.7 oz (24.67 lb)
- Author
- Model page created by Manfred Rathgeb. See "Data change" for further contributors.
