• Country
• France

• Manufacturer / Brand
• Ondia (Le Matériel); Boulogne-sur-Mer, Paris

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63073

• • alternative name: Le Matériel Ondia - see Ondia

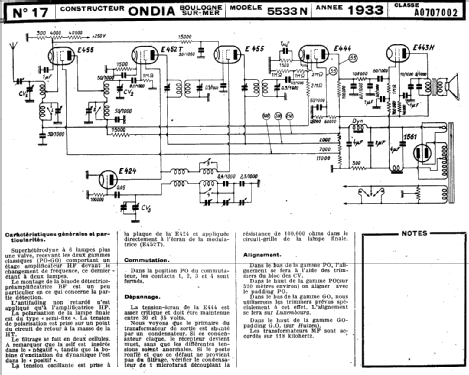

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• E455 E424 E452T E455 E444 E443H 1561

• Main principle
• Superhet with RF-stage; ZF/IF 118 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 5533N - Ondia Le Matériel; Boulogne-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 360 x 480 x 0 mm / 14.2 x 18.9 x 0 inch

• Notes

• Étage HF.

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Schémathèque Toute la Radio (STR) (No. 17)
