• Country
• France

• Manufacturer / Brand
• Ondia (Le Matériel); Boulogne-sur-Mer, Paris

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68489

• • alternative name: Le Matériel Ondia - see Ondia

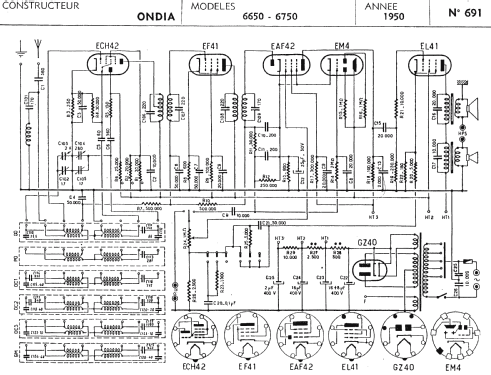

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EAF42 EL41 EM4 GZ40

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

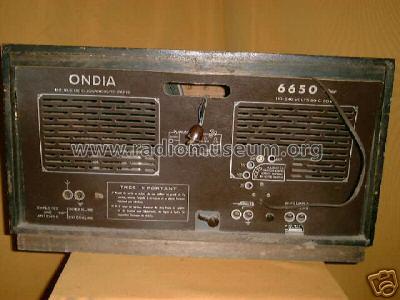

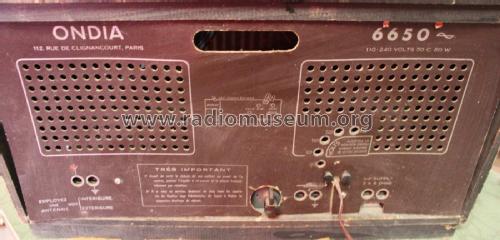

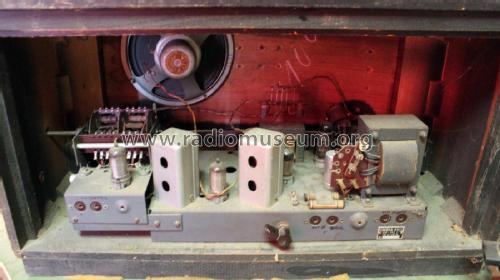

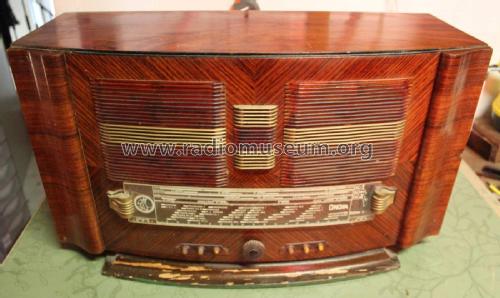

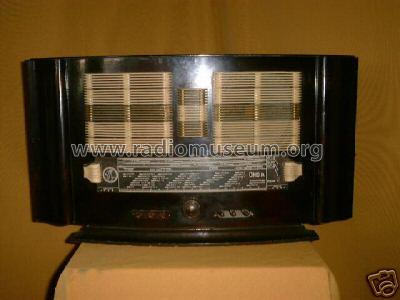

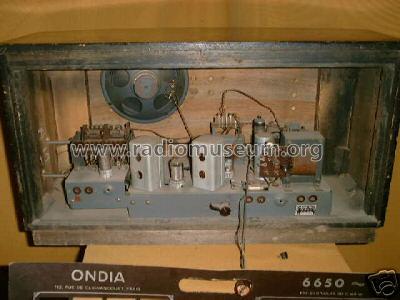

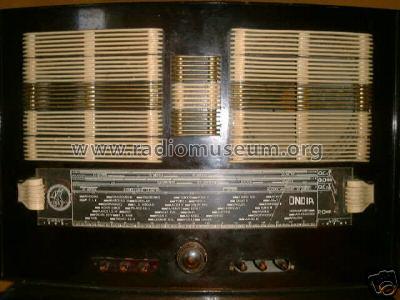

• Model: 6650 - Ondia Le Matériel; Boulogne-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 330 x 250 mm / 22.8 x 13 x 9.8 inch

• External source of data
• Serge Laffont/Martin Renoth

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur 1952
