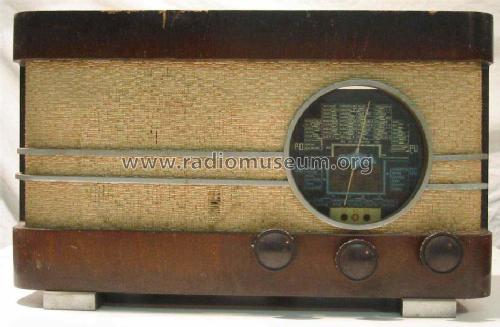

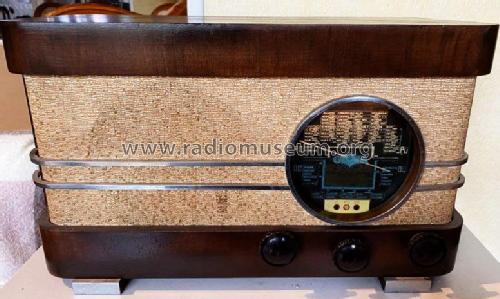

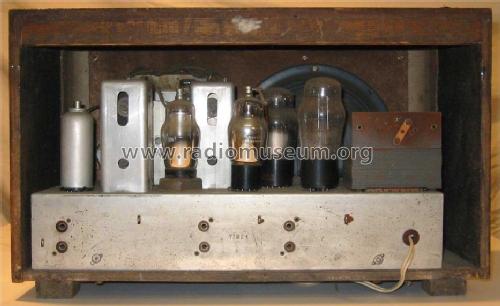

75 A

Ondia (Le Matériel); Boulogne-sur-Mer, Paris

Data
Forum
Pictures
Collections

  • Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 75014
    • alternative name: Le Matériel Ondia - see Ondia

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet. / Ø 19 cm = 7.5 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 75 A - Ondia Le Matériel; Boulogne-
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 440 x 270 x 240 mm / 17.3 x 10.6 x 9.4 inch
  • Notes

  • 3 gammes d'ondes : OC de 18 à 52 m, PO de 195 à 560 m, et GO de 1000 à 2000 m.

    Ébénisterie en noyer ramageux, laqué acajou foncé. Grille chromé.

  • Net weight (2.2 lb = 1 kg)
  • 7.2 kg / 15 lb 13.7 oz (15.859 lb)
  • Price in first year of sale
  • 1,350.00 FRF
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Tarif 01.08.1938)
  • Author
  • Model page created by Patrice Zeissloff. See "Data change" for further contributors.
