- Country
- France
- Manufacturer / Brand
- Optalix, T.E.D., (Faco); Amiens, Paris, Aubervilliers
- Year
- 1971 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 330520
-
- alternative name: TED, Technique et Décoration
from technical documentation

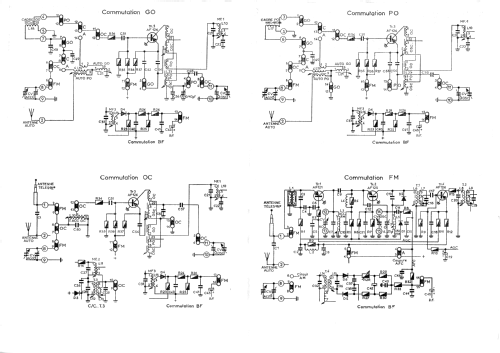

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- AF121 AF125 AF126 AF126 AF126 AF126 BC108 AC125 AC188 AC187 BA111 OA90 OA79 OA90 OA79 OA79
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 2 x 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 0.83 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Mercédès 3 - Optalix, T.E.D., Faco; Amiens,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 272 x 160 x 77 mm / 10.7 x 6.3 x 3 inch
- Notes
-
4 gammes d'ondes : FM de 87 à 108 MHz, OC de 5.9 à 18.8 MHz, PO de 520 à 1620 kHz, GO de 150 à 270 kHz.
Voir aussi modèle Mercédès (1) pour un aperçu.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
