Cantate O461-A (0461-A)
ORA, Oradyne, Gérard & Cie, AOR (SFRT); Clichy, Paris, Montrouge, Montreuil
- Country
- France
- Manufacturer / Brand
- ORA, Oradyne, Gérard & Cie, AOR (SFRT); Clichy, Paris, Montrouge, Montreuil
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 178967

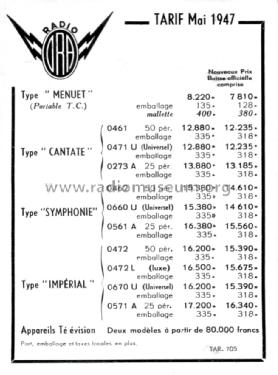

Catalogue 1947
Catalogue 1947
Catalogue 1947
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Cantate O461-A - ORA, Oradyne, Gérard & Cie,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 475 x 300 x 230 mm / 18.7 x 11.8 x 9.1 inch
- Notes
-
3 gammes d'ondes: 17 à 51 m, 185 à 600, 1000 à 2000 m. Prises pick-up et H.P. supplémentaire.
Coffret en belle ébénisterie, bois verni à la demande et dans l'essence désirée.
Voir aussi modèles Cantate O471-U en Universel et Cantate O273-A pour 25 périodes.
- Net weight (2.2 lb = 1 kg)
- 9.6 kg / 21 lb 2.3 oz (21.145 lb)
- Price in first year of sale
- 12,880.00 FRF
- Source of data
- -- Original prospect or advert
- Mentioned in
- Radio Technicien Juin-Juillet-Aout 1946
- Author
- Model page created by Eddy Rischmann. See "Data change" for further contributors.
