Cantilène (Cantilene) 611 tous courants
ORA, Oradyne, Gérard & Cie, AOR (SFRT); Clichy, Paris, Montrouge, Montreuil
- Country
- France
- Manufacturer / Brand
- ORA, Oradyne, Gérard & Cie, AOR (SFRT); Clichy, Paris, Montrouge, Montreuil
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232961

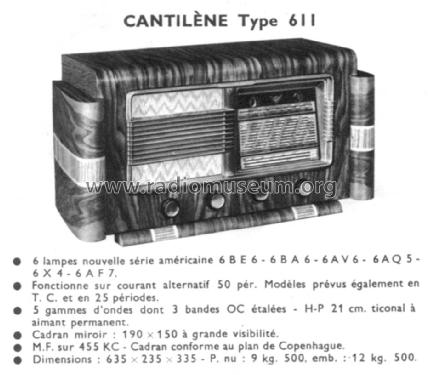

Catalogue Gamme 1950
Catalogue Gamme 1950
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Cantilène 611 [tous courants] - ORA, Oradyne, Gérard & Cie,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 635 x 335 x 235 mm / 25 x 13.2 x 9.3 inch
- Notes
-
Modèle ORA Cantilène 611;
Bloc "Eco" 5 gammes d'ondes dont 3 bandes OC étalées. H.P. ticonal à aimant permanent. Cadran miroir 190 x 150 mm, au plan de Copenhague.
Voir aussi modèles Cantilène 611 pour 50 périodes et Cantilène 611 pour 25 périodes.
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
