- Country
- France
- Manufacturer / Brand
- ORA, Oradyne, Gérard & Cie, AOR (SFRT); Clichy, Paris, Montrouge, Montreuil
- Year
- 1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62699
Documentation technique
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 130; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
- Power out
- 2 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: JU542 - ORA, Oradyne, Gérard & Cie,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 460 x 275 x 205 mm / 18.1 x 10.8 x 8.1 inch
- Notes
-
3 gammes d'ondes : OC de 16.5 à 51 m, PO de 185 à 575 m, GO de 1000 à 2000 m. Antifading agissant sur lampes changeuses de fréquence en PO-GO, et MF toutes gammes. Lampes cadran 2 x 6-8 V / 0.1A.

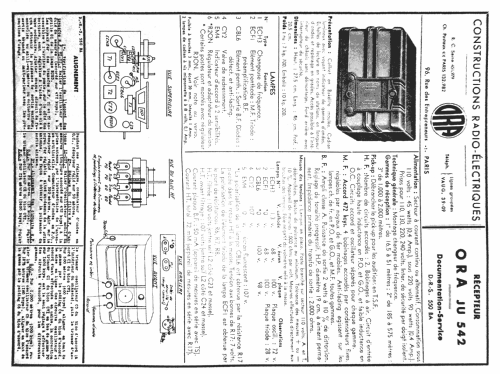

Attention : le schéma présenté dans la schémathèque est probablement erroné. Comparer avec page deux montrant le bon complément de lampes.
- Net weight (2.2 lb = 1 kg)
- 7.7 kg / 16 lb 15.4 oz (16.96 lb)
- External source of data
- Serge Laffont/Martin Renoth
- Circuit diagram reference
- La Documentation du Revendeur - Radio
- Mentioned in
- Schémathèque Toute la Radio (STR) (No. 403)
