Octomatic 813

ORA, Oradyne, Gérard & Cie, AOR (SFRT); Clichy, Paris, Montrouge, Montreuil

Data
Forum
Pictures
Collections

  • Year
  • 1950–1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 144602

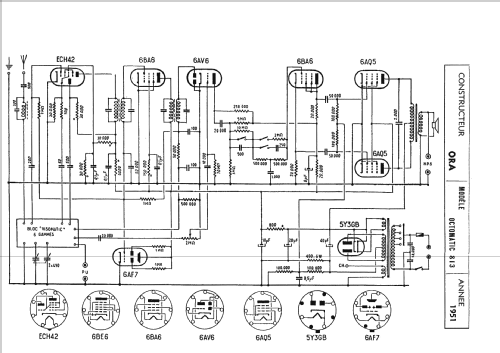

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Octomatic 813 - ORA, Oradyne, Gérard & Cie,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 650 x 370 x 280 mm / 25.6 x 14.6 x 11 inch
  • Notes

  • Bloc "Visomatic" 6 gammes d'ondes dont 4 OC étalées (étalement des 6 bandes principales). H.P. ticonal de 16 x 24 cm. Cadran 490 x 105 mm, au plan de Copenhague. Entraînement gyroscopique. Clavier à 12 touches.

    Modèle spécial pour 25 périodes.

  • Net weight (2.2 lb = 1 kg)
  • 14.5 kg / 31 lb 15 oz (31.938 lb)
  • Price in first year of sale
  • 42,500.00 FRF
  • Source of data
  • -- Schematic
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • Radio Constructeur et Dépanneur 1952
  • Author
  • Model page created by Raynal Aufils. See "Data change" for further contributors.
