• Country
• Hungary

• Manufacturer / Brand
• Orion; Budapest

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83386

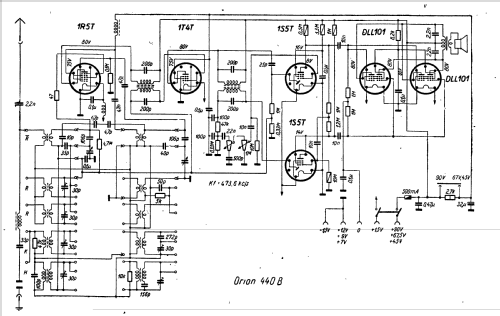

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1R5T 1T4T 1S5T 1S5T DLL101 DLL102

• Main principle
• Superheterodyne (common); ZF/IF 473,6 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Storage and/or dry batteries / 1,5; 7 oder 9 oder 12; 45 oder 67,5 oder 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 440B - Orion; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 370 x 270 mm / 21.7 x 14.6 x 10.6 inch

• Notes
• Gegentaktendstufe. Die Röhre DLL101 erscheint in der Franzis-Röhrenvergleichstabelle von 1949 (Werner Trieloff) noch nicht, also haben wir dieses Modell auf 1950 mit Fragezeichen gesetzt statt 1949.

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Price in first year of sale
• 1,800.00 HUF

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.

• Other Models

• Here you find 1029 models, 876 with images and 398 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
