- Country
- Hungary
- Manufacturer / Brand
- Telefongyar, Terta (TRT, Export = Orion); Budapest
- Year
- 1960–1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 78853
-
- Brand: Terta, TRT

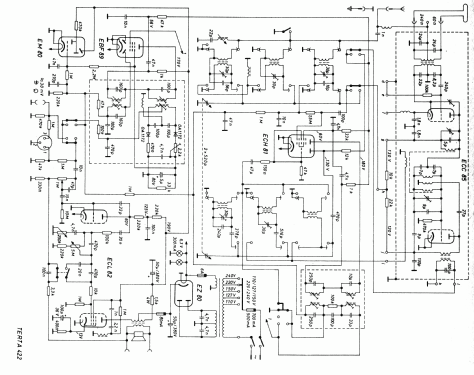

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 473,6 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110, 127, 150, 220, 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: T-422 - Telefongyar, Terta TRT, Export
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 580 x 330 x 260 mm / 22.8 x 13 x 10.2 inch
- Notes
- UKW Bereich 64,5 - 73 MHz (ORIT). Sprache- und Musiktaste, Bass- und Höhen-Drehregler, Tasten für Außenantenne und eingebaute Feritantenne, Kondensator-Hochton-LS. Ferritantenne kann mit UKW-Regler gedreht werden. Abm. Lautsprecher: dyn. = 21*15 cm, kond. = 13,7*3,4 cm. Radio ist eng verwandt mit Orion AR322, ist eigentlich ein Orion-Entwurf.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 2,200.00 HUF
- Source of data
- Radio es Televizio Vevö Keszülekek, 1960-63
- Author
- Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
