Titania AT951
Orion; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Orion; Budapest
- Year
- 1979
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 133221
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- 12
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

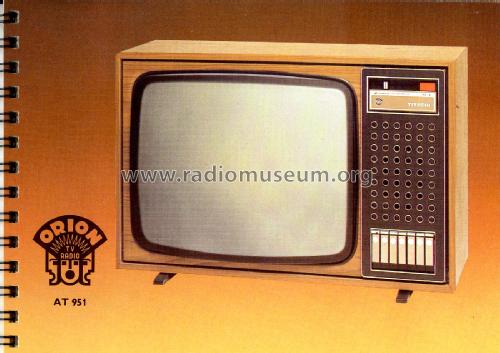

- Model: Titania AT951 - Orion; Budapest
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 640 x 410 x 300 mm / 25.2 x 16.1 x 11.8 inch
- Notes
-
VHF 1-12, UHF 21-60, OIRT-CCIR.
12 transistors, 5 ICs, 36 diodes.
See also model Uranus AT961 with same chassis but different picture tube size.
- Net weight (2.2 lb = 1 kg)
- 25 kg / 55 lb 1.1 oz (55.066 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
