• Country
• Austria

• Manufacturer / Brand
• ÖTAG; Österreichische Telefonfabriks-AG, vorm. J. Berliner; Wien

• Year
• 1929–1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10059

• • alternative name: Österreichische Telephonfabriks-AG
  • Brand: Berliner

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• A415 or B415 A415 or B543

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Direct Current supply (DC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org

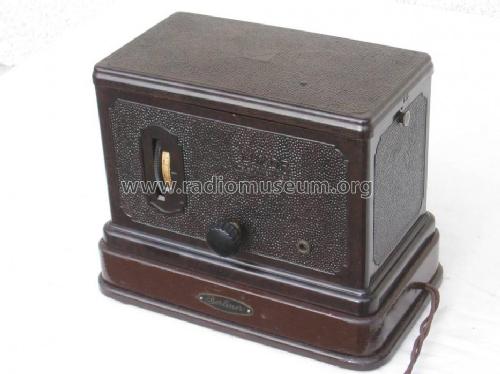

• Model: Luxor G 79200 - ÖTAG; Österreichische

• Dimensions (WHD)
• 270 x 210 x 170 mm / 10.6 x 8.3 x 6.7 inch

• Notes
• Steckspule innen

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Price in first year of sale
• 178.00 öS +

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
