Inconnu - Unknown 2
Pallas; (ou? where?)
- Country
- France
- Manufacturer / Brand
- Pallas; (ou? where?)
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251958
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 5 taps: 110 to 245 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
- Material
- Various materials
- from Radiomuseum.org
- Model: Inconnu - Unknown 2 - Pallas; ou? where?
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 380 x 260 x 220 mm / 15 x 10.2 x 8.7 inch
- Notes
-

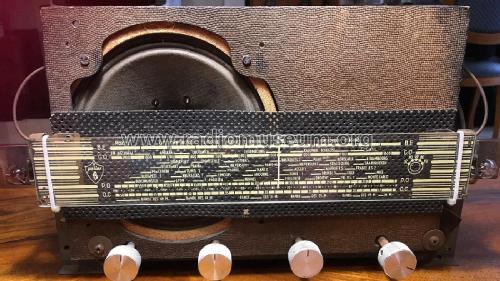

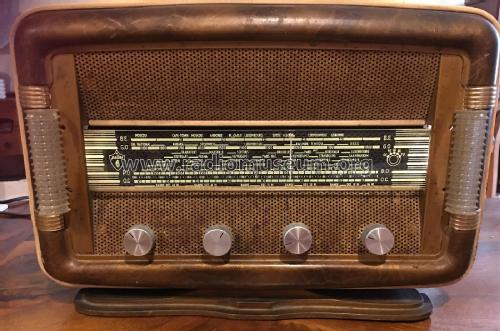

Cadran verre avec logo de la marque, prises Ant/terre + PU. 4 boutons de commande à l'avant du poste. Matière bois + ornements plastique et grille métal sur face avant. Lampes de type "miniature" de marque "Grammont".
- Author
- Model page created by Vincent Baccialone. See "Data change" for further contributors.
- Other Models
-
Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Pallas; (ou? where?)
Collections
The model Inconnu - Unknown 2 is part of the collections of the following members.
