• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1973 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 323583

• Number of Transistors
• 7

• Semiconductors
• 2SA103 2SA102 2SA102 2SB175 2SB345 2SB324 2SB324 OA90

• Main principle
• Superhet with RF-stage; ZF/IF 262.5 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 11-16 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

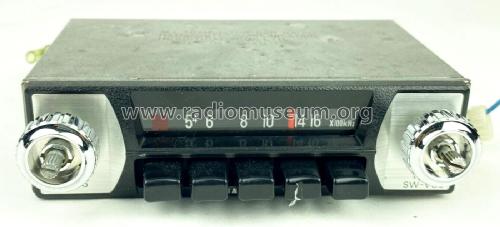

• Model: National CR-119EN - Panasonic, Matsushita,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 16.3125 x 1.75 x 3.75 inch / 414 x 44 x 95 mm

• Notes

• Broadcast only push-button car radio.

• Net weight (2.2 lb = 1 kg)
• 2 lb 0 oz (2 lb) / 0.908 kg

• Literature/Schematics (1)
• J.R. Publications Car Radio Service Handbook (Group G8 1974, Page N11.)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
