Super 6 W 062/060 Bakelit
Panradio (A) - siehe AUCH Musicaphon
- Country
- Austria
- Manufacturer / Brand
- Panradio (A) - siehe AUCH Musicaphon
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 10083
Panradio Super 6W
Panradio Super 6W (Innenansicht)
Panradio Super 6W (Rückansicht)
Panradio Super 6 in Bakelit
by courtesy of "Collection Kratky", Austria
by courtesy of "Collection Kratky", Austria
by courtesy of "Collection Kratky", Austria
by courtesy of "Collection Kratky", Austria

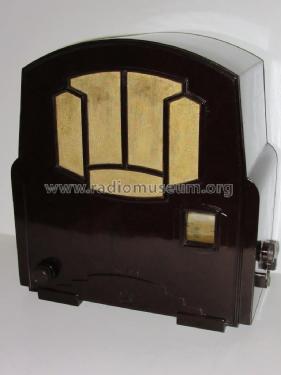

Panradio Super 6W
Panradio Super 6W
Panradio Super 6W (Typenschild auf Rückwand)

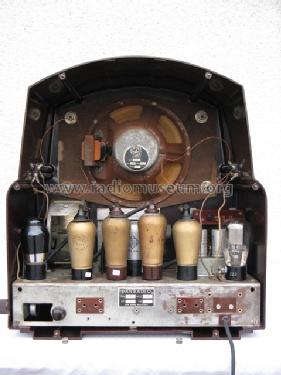

Panradio Super 6W (Innenansicht)

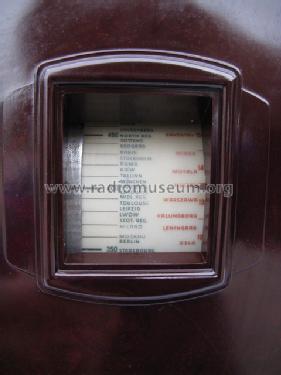

Panradio Super 6W (Skala)
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 128 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Super 6 W 062/060 [Bakelit] - Panradio A - siehe AUCH
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 450 x 415 x 235 mm / 17.7 x 16.3 x 9.3 inch
- Notes
- Ab dem Weihnachtsgeschäft 1933 wurde der Apparat von Werk aus mit moderneren Röhren ausgeliefert: E447, E409, E447, E446, E444, E443H, 1805
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
- Price in first year of sale
- 495.00 öS
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- RADIOBOTE, Österr. (Heft 8/2007, S.3 ff, Gerätebeschreibung)
