• Country
• Austria

• Manufacturer / Brand
• Panradio (A) - siehe AUCH Musicaphon

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10087

• Number of Tubes
• 3

• Valves / Tubes
• E424N E453 1805

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

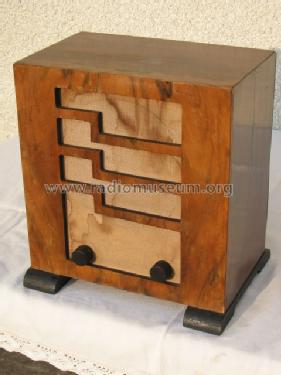

• Model: Panradio Universal 2 010/012 - Panradio A - siehe AUCH

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 275 x 304 x 208 mm / 10.8 x 12 x 8.2 inch

• Notes

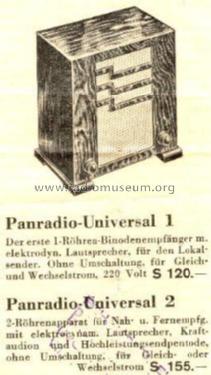

• Ab 8. Mai 1934 werden PANRADIO 2 Apparate in der Radio-Zentrale Paul HALPERT, Mariahilferstraße 86, 1070 Wien exklusiv um nur ÖS 79,- angeboten (ÖRA 05/1934)

• Net weight (2.2 lb = 1 kg)
• 7.4 kg / 16 lb 4.8 oz (16.3 lb)

• Price in first year of sale
• 155.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• RADIOBOTE, Österr. (Heft 8/2007, S.3 ff, Gerätebeschreibung)

• Other Models

• Here you find 22 models, 15 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Panradio (A) - siehe AUCH Musicaphon
