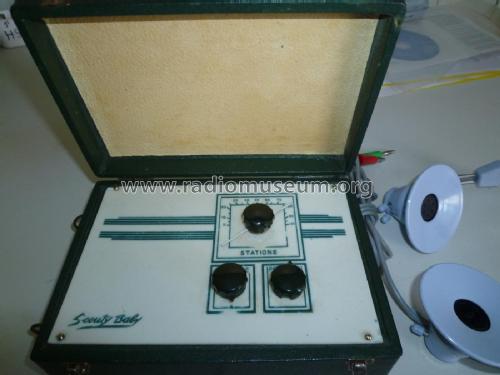

Scouty Baby avec 2 x 1L4
Papyrus-Radio; Paris
- Country
- France
- Manufacturer / Brand
- Papyrus-Radio; Paris
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170421
Scouty Baby Modèle avec deux 1L4
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 1,5 & 67,5 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Scouty Baby [avec 2 x 1L4] - Papyrus-Radio; Paris
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 125 x 180 x 65 mm / 4.9 x 7.1 x 2.6 inch
- Notes
- Il y a eu plusieurs modèles, celui-ci est probablement le dernier avant l'apparition des montages à transistors.
Piles: Chauffage une 1,5 V (R 20). Haute tension: 67,5 V.
- Other Models
-
Here you find 12 models, 10 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Papyrus-Radio; Paris
Collections
The model Scouty Baby is part of the collections of the following members.
Forum contributions about this model: Papyrus-Radio; Paris: Scouty Baby
Threads: 1 | Posts: 1
dans ma collection:
même modèle avec une lampe type -1G6
in my collection:
same model with a lamp type - 1G6
nella mia collezione :
stesso modello con una lampada tipo - 1G6
Gian-Fausto Balestra, 02.Oct.10
