• Country
• France

• Manufacturer / Brand
• Pathé-Marconi, Les IME (I.M.E.), La Voix de son Maître; Paris

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111560

• • alternative name: La Voix de son Maître

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 19T3 - Pathé-Marconi, Les IME I.M.E.,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 165 x 60 mm / 10.4 x 6.5 x 2.4 inch

• Notes
• Transistors: 3× SFT316, 2× SFT353, 2× SFT323, AF124, AF125.

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

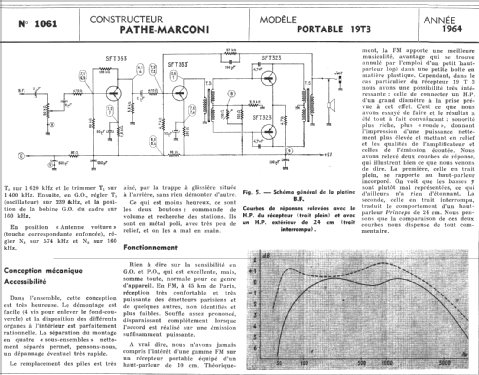

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
