- Country
- France
- Manufacturer / Brand
- Pathé-Marconi, Les IME (I.M.E.), La Voix de son Maître; Paris
- Year
- 1975 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 299154
-
- alternative name: La Voix de son Maître
Dépliant Pathé-Marconi
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- BF254 BC170 or. BF255 BC170 or. BF255 BC149 or. BC109 BC149 or. BC109 BC183 or. BC108 AC193 or. AC188 AD161 AD162
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: AKR25V - Pathé-Marconi, Les IME I.M.E.,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 180 x 60 x 170 mm / 7.1 x 2.4 x 6.7 inch
- Notes
-
11 transistors + 4 diodes. 3 stations préréglées en GO. Polarité négative ou positive à la masse. HP de 12 x 19 cm en coffret séparé.
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)

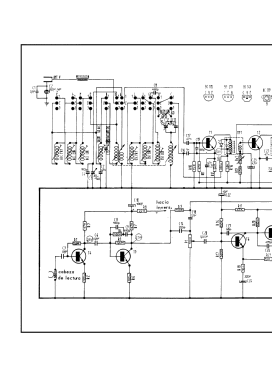

- -- Schematic (Esquemario Magnetófonos y Cassettes REDE, Tomo VI, 1978)
