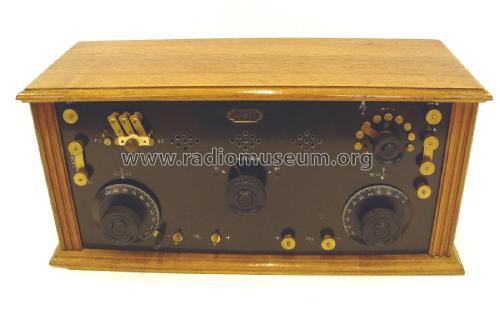

Poste Delta No. 2503
Péricaud, G. et A. Péricaud Fils (SEP, S.E.P.); Paris
- Country
- France
- Manufacturer / Brand
- Péricaud, G. et A. Péricaud Fils (SEP, S.E.P.); Paris
- Year
- 1923 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 291500
Collection privée (réf.: 33)
Collection privée (réf.: 33)
Catalogue Collection privée (réf.: 33)
- Number of Tubes
- 3
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 4 & 40 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Poste Delta No. 2503 - Péricaud, G. et A. Péricaud
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 440 x 210 x 175 mm / 17.3 x 8.3 x 6.9 inch
- Notes
-
Accessoires nécessaires pour ce poste:
- 1 casque à 2 écouteurs 2000 ohms No. 1221 (Fr. 62)
- 3 lampes No. 1017 (Fr. 18)
- 1 accumulateur 4 volts 40 AH No. 1672 (Fr. 130)
- 1 batterie piles 40 volts No. 1899 (Fr. 25).
- Net weight (2.2 lb = 1 kg)
- 5.1 kg / 11 lb 3.7 oz (11.233 lb)
- Price in first year of sale
- 600.00 FRF
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Musée des Radios Museum. See "Data change" for further contributors.
