• Country
• France

• Manufacturer / Brand
• Péricaud, G. et A. Péricaud Fils (SEP, S.E.P.); Paris

• Year
• 1922 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 293866

• Number of Tubes
• 4

• Valves / Tubes
• TM TM TM TM

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4 & 80 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

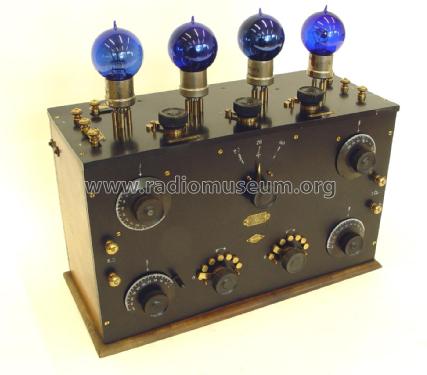

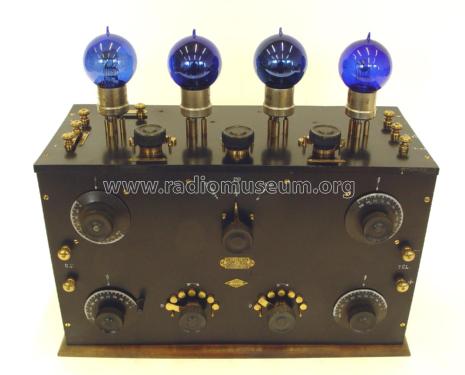

• Model: Récepteur 4 lampes - Péricaud, G. et A. Péricaud

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 410 x 340 x 150 mm / 16.1 x 13.4 x 5.9 inch

• Notes

• Récepteur à 4 lampes

• Net weight (2.2 lb = 1 kg)
• 5.7 kg / 12 lb 8.9 oz (12.555 lb)

• Author
• Model page created by Musée des Radios Museum. See "Data change" for further contributors.
