111 Highboy
Philco, Philadelphia Stg. Batt. Co.; USA
- Produttore / Marca
- Philco, Philadelphia Stg. Batt. Co.; USA
- Anno
- 1931
- Categoria
- Radio (o sintonizzatore del dopoguerra WW2)
- Radiomuseum.org ID
- 138261
My Philco 111, side view.
My Philco 111 doors open.
Philco Highboy
Closeup of front controls and grill cloth.

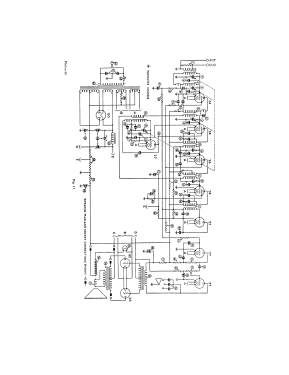

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.
- Numero di tubi
- 11
- Principio generale
- Supereterodina con stadio RF; ZF/IF 175 kHz
- Gamme d'onda
- Solo onde medie (OM).
- Tensioni di funzionamento
- Alimentazione a corrente alternata (CA) / 115 Volt
- Altoparlante
- AP elettrodinamico (bobina mobile e bobina di eccitazione/di campo)
- Materiali
- Mobile in legno
- Radiomuseum.org
- Modello: 111 Highboy - Philco, Philadelphia Stg. Batt
- Forma
- Console, con gambe d'appoggio alte (> 50%).
- Annotazioni
- Models 111 and 111A were Philco's first superheterodyne radios and were available in a lowboy or a highboy cabinet. Model 111 is for 50-60 Hz and model 111A is for 25-60 Hz.
- Fonte dei dati
- Philco Radio 1928-1942
- Riferimenti schemi
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Letteratura / Schemi (1)
- Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
- Autore
- Modello inviato da Thomas Albrecht. Utilizzare "Proponi modifica" per inviare ulteriori dati.
- Altri modelli
-
In questo link sono elencati 4041 modelli, di cui 2218 con immagini e 3690 con schemi.
Elenco delle radio e altri apparecchi della Philco, Philadelphia Stg. Batt. Co.; USA
Discussioni nel forum su questo modello: Philco, Philadelphia: 111 Highboy
Argomenti: 1 | Articoli: 1
Oversight or magnifying glass?
We have always the problem of quantity versus quality. That is the reason why I collected about 250 pounds of US periodicals, catalogs and brochures. Because I received a contact form with pictures from a guest I had a look into books, journals and Internet. In Internet one finds a very nice picture but it does not say if it is style "Louis XVI" or "William and Mary" design. Picture and text from the "Radio Retailing", January 1931, page 52 I added here. We can hope that one day a guest or member will tell us - or that we get the right brochure for it.
When we know more, we have to split this model not only in 111 and 111A but also by cabinet.
I added also the remains of a Highboy to show legs in detail. Guest Dave Hudson did not want to throw it away and would like to give it for free to a collector ... Who is interested? A close look at the legs tells us also that they have been made at "Philco Furniture Plant 25". I will also ask for the measurements.
It can be noted that this was Philco's first Superhet model - but the cabinet was also used for other chassis. Therefore one has to be careful with uploading photos. We leave some wrong photos until we know to which model we have to move them to. The knobsd sometimes may even tell ... Since the Superhet is mentioned in January (print in December ... having facts before), it is quite possible that these models are of season 1930/31, not year 1931.
Who is willing to help scanning and loading up more from catalogs or journals? All the content is made by members - but it has to be done ... We have a unique possibility to really get a most complete reference work for all collectors - if we get more persons, willing to help.
On the same page for instance is the early "Home Talking Movies" (Movie, Radio Phonograph Combination) set Visionola, introduced by Visionola Mfg. Corp., 60 East 42nd Street, New York, sold by Sparton (Sparks-Withington Co.). In February 1931 the model was featured by "Radio News". This was similar to Visivox from Sprague.
Ernst Erb, 24.Sep.09
