37-2650X

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 137778

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 470 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 7 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 37-2650X - Philco, Philadelphia Stg. Batt
  • Shape
  • Console with any shape - in general
  • Notes

  • The Philco model 37-2650 series are 8-tube 4-band receivers which are export versions of selected models from the 37-650 series. On the 37-2650 series, a fourth band (LW) is added, and -E suffix ruggedized tubes are specified. Band coverage is 150-350 kHz (LW), 530-1720 kHz (BC), 5.7-11.6 MHz (SW1), and 11.5-18.2 MHz (SW2). Power source is selectable between 110 and 220 VAC 50-60 Hz by means of a two-position plug in the power supply. There are also versions for the North American market with 115 VAC (single voltage choice) supply, with either 50-60 Hz or 25-40 Hz power transformer. The North American versions do not use -E tubes.

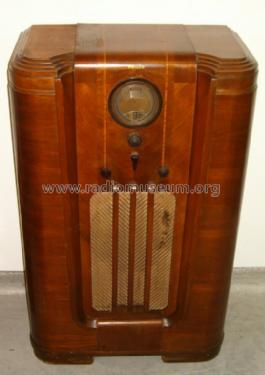

    There are two models in the series with different cabinet styles. Model 37-2650B is a tombstone, and model 37-2650X is a console with inclined sounding board.

    All versions include a shadow meter (tuning aid).

  • Price in first year of sale
  • 105.00 $
  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
  • Literature/Schematics (3)
  • Philco Folder No. PR-430 for 1937.
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
