• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 50748

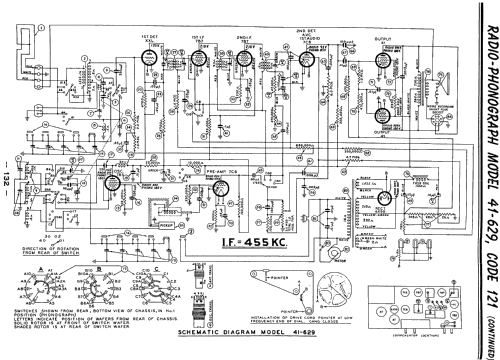

Click on the schematic thumbnail to request the schematic as a free document.

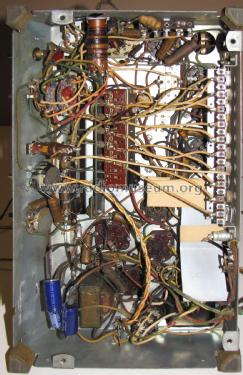

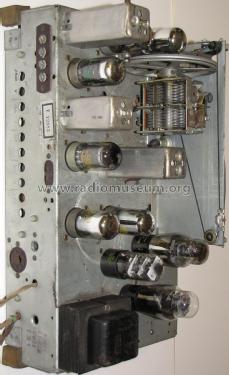

• Number of Tubes
• 9

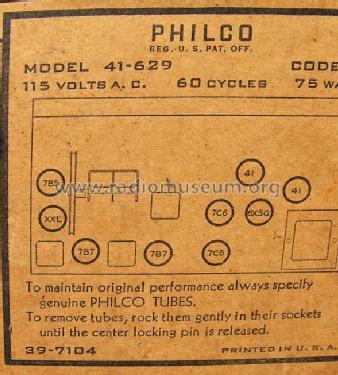

• Valves / Tubes
• 7B5 XXL 7B7 7B7 7C6 7C6 41 41 6X5G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org

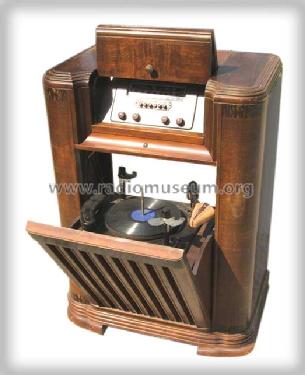

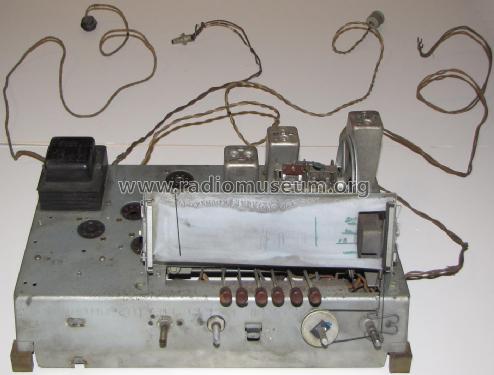

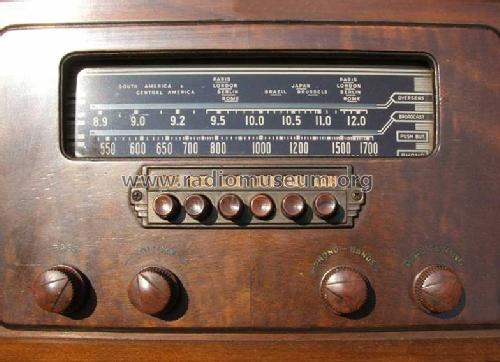

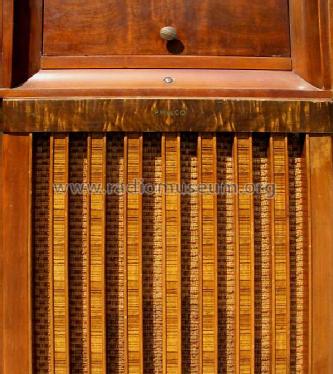

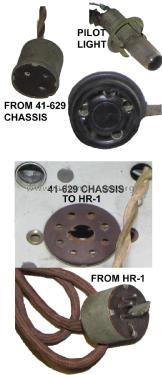

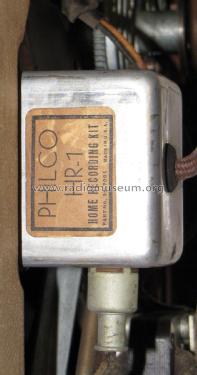

• Model: 41-629P Radio-Phonograph - Philco, Philadelphia Stg. Batt

• Shape

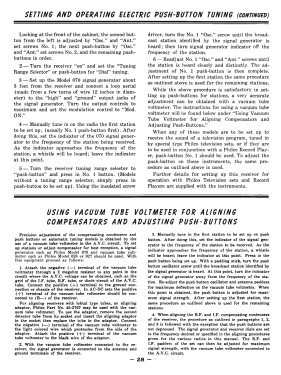

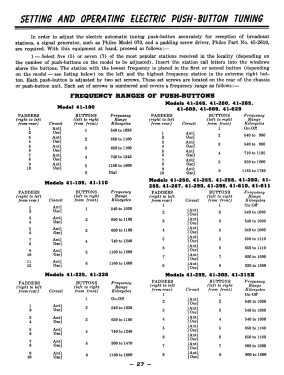

• Console with Push Buttons.

• Notes

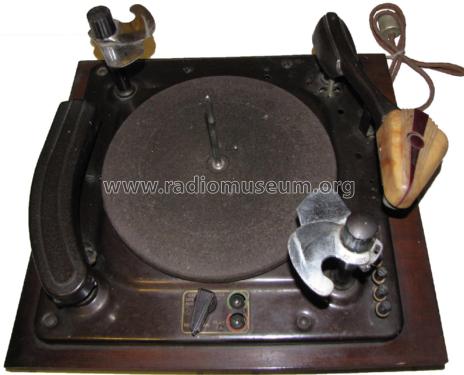

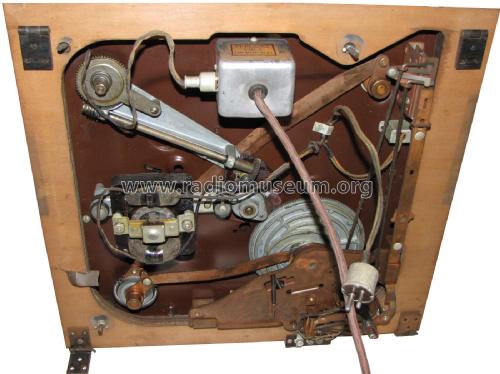

• Model 41-269P uses Philco's "Beam of Light" phonograph pickup with an automatic record changer.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

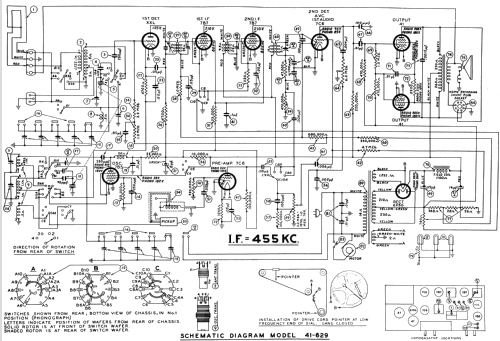

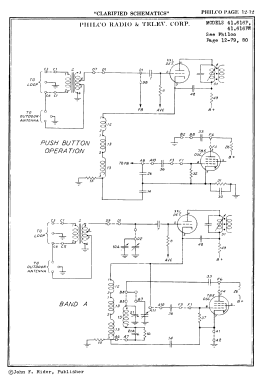

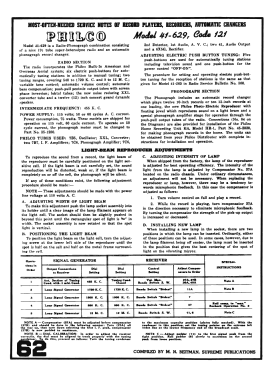

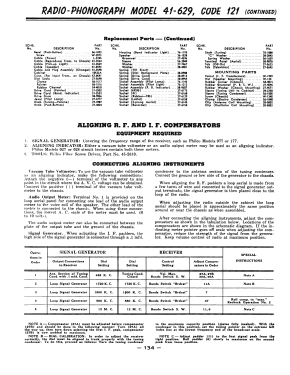

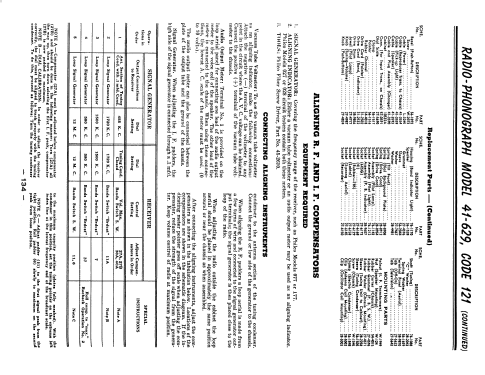

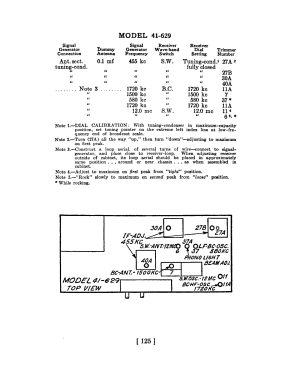

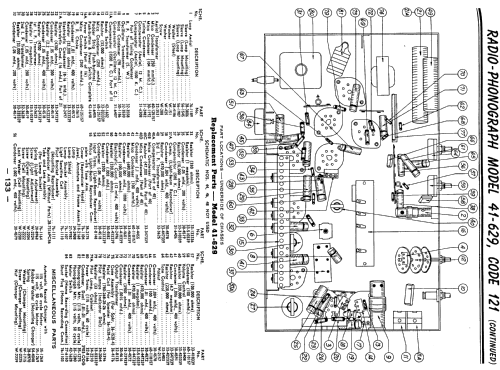

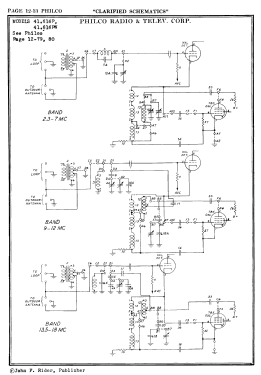

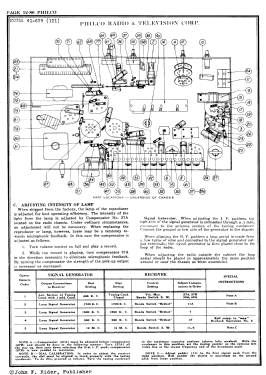

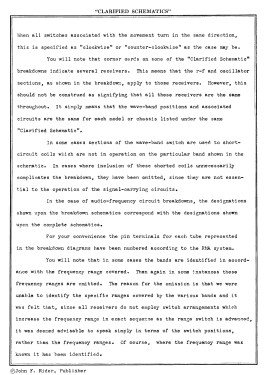

• Circuit diagram reference

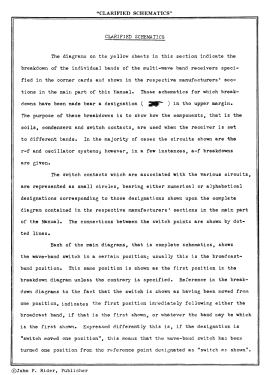

• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Philco Radio 1928-1942

• Literature/Schematics (1)
• Philco 1941 RMS Year Book
