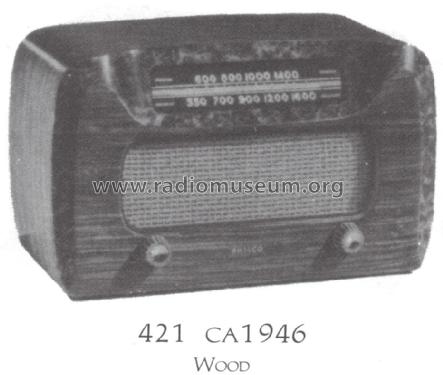

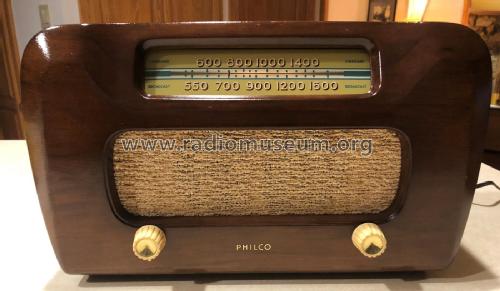

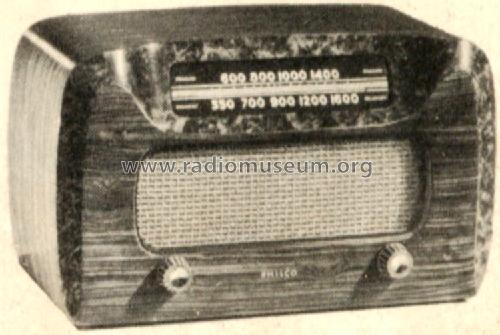

46-421

• País
• Estados Unidos

• Fabricante / Marca
• Philco, Philadelphia Stg. Batt. Co.; USA

• Año
• 1946

• Categoría
• Radio - o Sintonizador pasado WW2

• Radiomuseum.org ID
• 50871

• Imágenes
• Esquemas

Previous Next

Previous Next

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

• Numero de valvulas
• 6

• Válvulas
• 7C7 7A8 7B7 7C6 50L6GT 35Z5GT

• Principio principal
• Superheterodino con paso previo de RF; ZF/IF 455 kHz; 2 Etapas de AF

• Número de circuitos sintonía
• 7 Circuíto(s) AM

• Gama de ondas

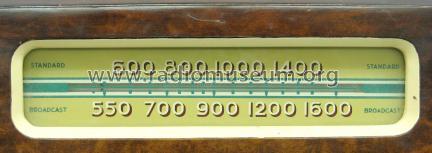

• OM (onda media) solamente

• Tensión de funcionamiento
• Red: Aparato AC/DC. / 115 Volt

• Altavoz
• Altavoz electrodinámico (bobina de campo)

• Material
• Madera

• de Radiomuseum.org
• Modelo: 46-421 - Philco, Philadelphia Stg. Batt

• Forma

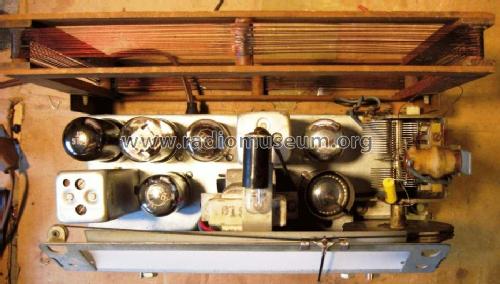

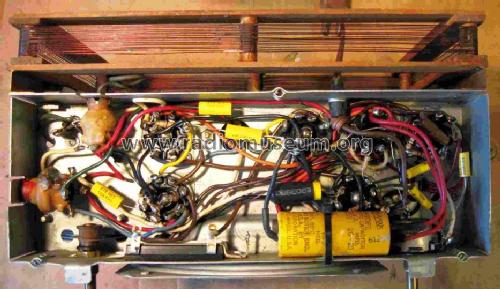

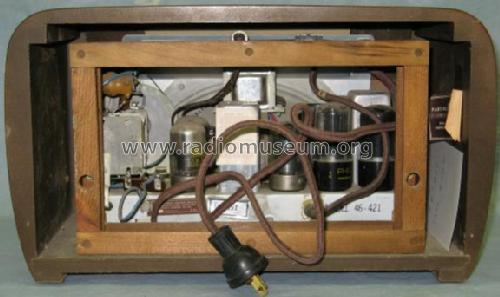

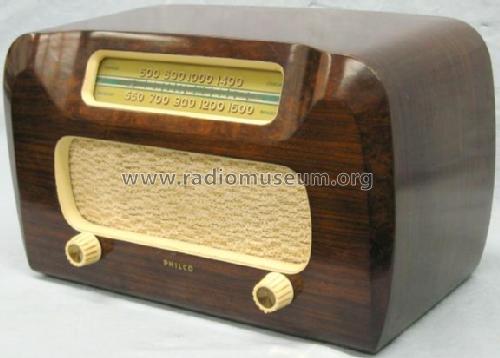

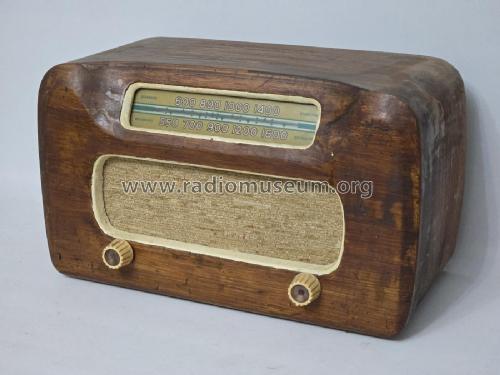

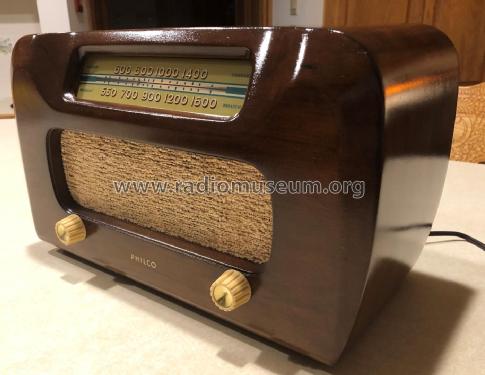

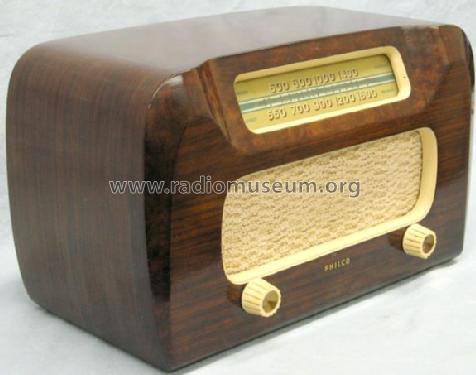

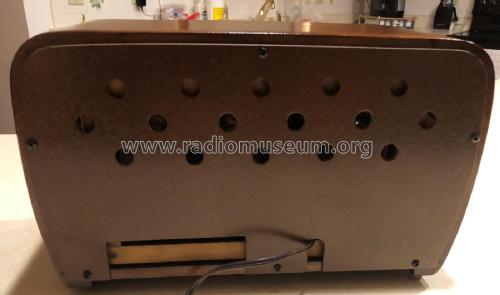

• Sobremesa apaisado (tamaño grande).

• Anotaciones

• Elliptical speaker 4" × 6". Sams photofact folder 465-12 date 10-46 features the Philco models 46-421 and 46-421-1 as the same schematic.

• Ext. procedencia de los datos
• Ernst Erb

• Procedencia de los datos
• Collector's Guide to Antique Radios 4. Edition

• Referencia esquema
• Rider's Perpetual, Volume 19 = 1949 and before

• Mencionado en
• A Flick of the Switch 1930-1950

• Documentación / Esquemas (1)
• Photofact Folder, Howard W. SAMS (Folder 465-12 date 10-46)

• Documentación / Esquemas (2)
• Machine Age to Jet Age II (page 218.)

• Documentación / Esquemas (3)

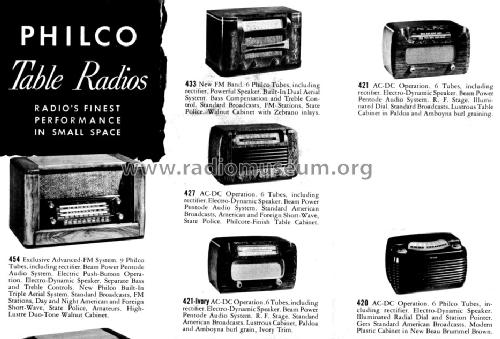

• Philco Folder for 1946.

• Otros modelos

• Donde encontrará 4017 modelos, 2213 con imágenes y 3667 con esquemas.
  Ir al listado general de Philco, Philadelphia Stg. Batt. Co.; USA

Contribuciones en el Foro acerca de este modelo: Philco, Philadelphia: 46-421

Hilos: 1 | Mensajes: 1

philco: Make a new Special Inductive Capacitor - IF trap.



How to make a Philco “Special” capacitor.



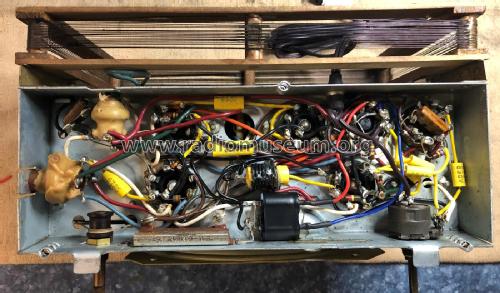

Philco uses a Special Capacitor that has an inductive series coil added. Philco also uses a special capacitor that has highly inductive qualities engineered in. It is designed to bypass IF to chassis ground. This Philco 46-421 uses one of these as C401. I had to fabricate a replacement. This is how I did it.



To build the coil:

• First acquired a new polypropylene capacitor of 0.2uf 630volts. The high voltage is what I had in stock.
• Use enamel covered magnetic wire.  First soldered one end of the wire to one capacitor lead and clipped it short.
• Lay the wire up the middle of the capacitor lengthwise and wrap the coil over top of the magnet wire lead. This holds the wire from slipping.
• Wrap about a 1cm long coil around the out side of the new capacitor.
• Secure the loose coil in place with sticky tape.





To adjust the coil:

• Connect a 1 or 2 ohm resistor to the free capacitor lead wire. This resistor will generate a voltage to be measured by the oscilloscope.
• Connect the ground lead of the o-scope and signal generator to the loose end of the resistor.
• Connect the o-scope probe to the junction of the resistor and capacitor.
• Connect the signal generator to the loose end of the new coil.
• Set the signal generator for 455 kHz IF frequency.





Adjust the o-scope to display the signal and set an amplitude reference point. The o-scope has a percentage graticule. I set the amplitude for 100%.











Then raised and lowered the frequency. Added or remove coil windings until the signal decreased on either side of 455kHz.





Checked the top end and bottom end frequency at 90% attenuation. Once satisfied with the response replace the sticky tape with heat shrink tubing.







I tried a UL rated safety capacitor with a smaller value but birdies (harmonic interference) appeared across the band. I remade the filter with the original capacitance of 0.2 uf and all the birdies were gone.



Other reference reading can be found on the “Philco Repair Bench” web site. It has a great functional description of Philco’s Special Capacitors.



Happy Fabricating,

Paul





Paul E. Pinyot † 2013, 21.Jan.11
