• Année
  • 1933
  • Catégorie
  • Radio - ou tuner d'après la guerre 1939-45
  • Radiomuseum.org ID
  • 140299

Cliquez sur la vignette du schéma pour le demander en tant que document gratuit.

 Spécifications techniques

  • No. de tubes
  • 5
  • Principe général
  • Super hétérodyne (en général); FI/IF 460 kHz
  • Gammes d'ondes
  • PO, Police / Maritime et TV (75-200m)
  • Tension / type courant
  • Alimentation Courant Alternatif (CA) / 115 Volt
  • Haut-parleur
  • HP dynamique à électro-aimant (électrodynamique)
  • Matière
  • Boitier en bois
  • De Radiomuseum.org

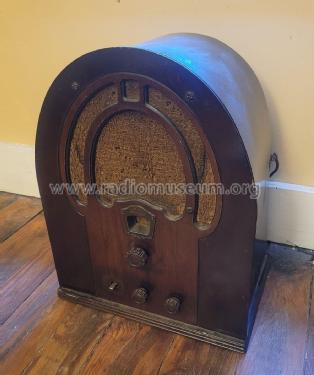

  • Modèle: 60B [Version 1] - Philco, Philadelphia Stg. Batt
  • Forme
  • Modèle de table vertical cathédrale (dessus arrondi)
  • Remarques
  • The Philco model 60 series included nine versions over four years, all using similar 5-tube chassis.

    There were six versions of the 60B cathedral. Version 1 (1933) had the simpler flat-front version of the classic cathedral cabinet with spade-shaped speaker grill which was used on many 1933 models. Version 2 (1934) had three vertical bars through the center of the center of the speaker grill, with short downward curving arcs added at the bottom of the speaker. Versions 3 and 4 (1934-35) had similar cabinets with an oval shaped speaker grill with a stair-step pattern; version 3 had a metal escutcheon with "Philco" stamped into the metal, and version 4 had a black bakelite escutcheon with a "Philco" decal on the center of the wooden front. Version 5 (1935) had the same cabinet as versions 3 and 4, but with a larger black bakelite escutcheon and a new dial scale design. Version 6 (1936) was a new style cabinet with a continuous arch from the base of the cabinet.

    Model 60MB (1934) was a tombstone with a modern design, having three downward facing arcs through the speaker grill and hexagonal knobs.

    Model 60L (1933-35) was an ornate lowboy with four vertical bars through the speaker grill and other embellishment.

    Model 60F (1935-36) was a floor-type console with a tulip-shaped speaker grill.

    The general spirit of the model 60 series continued into 1937 and 1938 with models 37-60 and 38-60, which were also 5-tube 2-band radios.

    Stein "Cathedral & Tombstone Radios" calls this model "60" and lists only 1 band.

  • Prix de mise sur le marché
  • 28.00 $
  • Source du schéma
  • Rider's Perpetual, Volume 4 = ca. 1934 and before
  • Schémathèque (1)
  • Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
  • Schémathèque (3)
  • Philco Folder for 1933/34.
  • Auteur
  • Modèle crée par Thomas Albrecht. Voir les propositions de modification pour les contributeurs supplémentaires.

 Collections | Musées | Littérature

 Forum

Contributions du forum pour ce modèle: Philco, Philadelphia: 60B

Discussions: 1 | Publications: 23

Hello all,

I'm replacing the speaker in this 60 philco with a permanent magnet speaker. I've replaced the field coil with a 10watt 1k ohm resister. the radio works ok but the resister gets very hot. Is this normal or am I doing something wrong?

Kind regards,

Bill

Bill Boles, 23.Apr.13
