Studebaker AC-891

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 346716

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Studebaker AC-891 - Philco, Philadelphia Stg. Batt
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 10.5 x 7 x 5.5 inch / 267 x 178 x 140 mm
  • Notes

  • Similar model is Philco 40-81T Code 122.

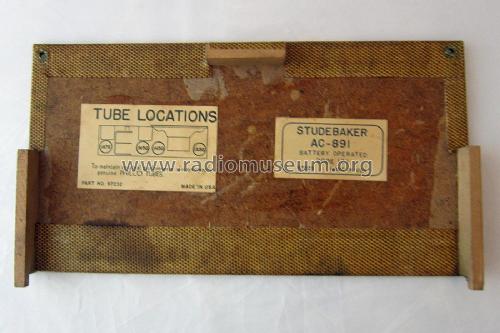

    This radio was made by Philco for Studebaker, and sold as Studebaker accessories. It appears to be identical to Philco Model 40-81T except for the Studebaker badging and Studebaker model number.  Most likely is also "Code 122" schematic even though the label says "Code 121".

  • Net weight (2.2 lb = 1 kg)
  • 6.6 lb (6 lb 9.6 oz) / 2.996 kg
  • Literature/Schematics (1)
  • Antique Studebaker Review, May/June 1984 by R. Quinn, "A Brief History of Early S'baker Accessories"
  • Author
  • Model page created by Larry Smith. See "Data change" for further contributors.
