• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1957/1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 83525

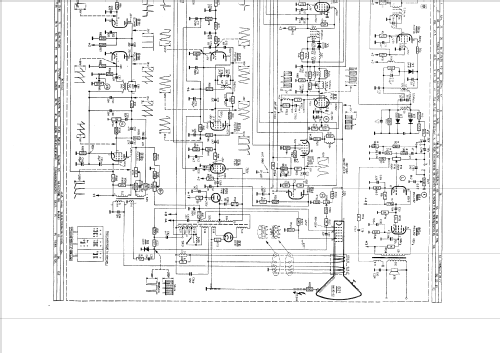

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCC88 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 PCF80 PCF80 PCL82 ECH81 PCL82 PCF80 PL36 PY81 DY87 UY82 UY82 AW43-80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 17TA144A /01 Ch= C3 - Philips - Österreich

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 530 x 510 x 470 mm / 20.9 x 20.1 x 18.5 inch

• Notes

• Trommeltuner mit VHF Band I + III,
  190 Watt Leistungsaufnahme.

  Nicht verwechseln mit 17TA144A/00, ohne Drucktasten.

  Paralleltype zum Hornyphon WT1734A/01.

• Net weight (2.2 lb = 1 kg)
• 27.5 kg / 60 lb 9.2 oz (60.573 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
