• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1958/1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 83756

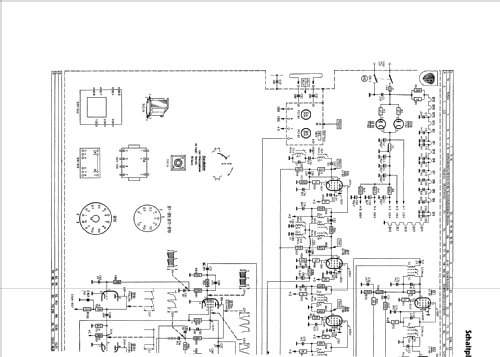

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• PCC88 PCF80 EF80 EF80 EF80 PCL84 EF80 EF80 PCL82 PCF80 ECH81 PCF80 PCL82 PL81 PY81 DY87 PY82 PY82 AW43-80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 17TA180U /00 Ch= S4 - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 475 x 445 x 450 mm / 18.7 x 17.5 x 17.7 inch

• Notes

• Empfangsbereich: Band I + III, Kanal 2a - 4, 5 - 12
  Parallelgerät zum Horny WT1718U/00.

• Net weight (2.2 lb = 1 kg)
• 21.2 kg / 46 lb 11.1 oz (46.696 lb)

• Price in first year of sale
• 5,970.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
