- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1943 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 182328
Sammlung: Ronald van Apeldoorn (NL).
Sammlung: Ronald van Apeldoorn (NL).
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s); Export model
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Material
- Bakelite case
- from Radiomuseum.org

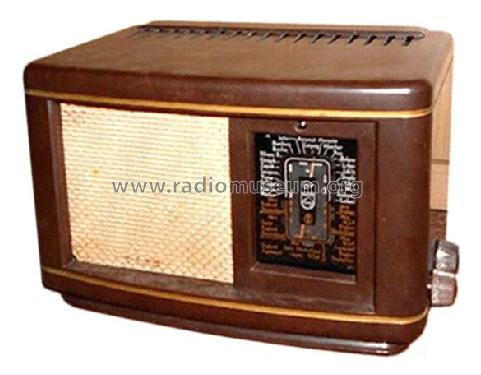

- Model: 205U - Philips; Eindhoven tubes
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 280 x 160 x 130 mm / 11 x 6.3 x 5.1 inch
- Notes
-
Siehe auch Philips 205U-07 und 205U-10.
Die Modelle 205U im Bakelitgehäuse sind Exportmodelle, insbesondere für Skandinavien und Süd-Ost-Europa. Sie basieren auf der Schaltung des Philips 204U, jedoch mit einem Saugkreis im Antennenkreis.
- Literature/Schematics (1)
- Radio Historisch Tijdschrift, Nr. 166, September 2018
- Author
- Model page created by Torsten Stein. See "Data change" for further contributors.
