- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1943/1944
![perfect model](/img/sternRot.gif)
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 72712
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / see remarks: 110 or 125 or 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 207U-04 - Philips; Eindhoven tubes
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 275 x 170 x 138 mm / 10.8 x 6.7 x 5.4 inch
- Notes
-
This model employs carousel plugs instead of the usual voltage selector to choose the operating voltage (see schematic).
- Net weight (2.2 lb = 1 kg)
- 2.8 kg / 6 lb 2.7 oz (6.167 lb)
- Mentioned in
- -- Schematic
- Author
- Model page created by Hans-Dieter Haase † 5.2.18. See "Data change" for further contributors.
- Other Models
-
Here you find 5242 models, 4379 with images and 3446 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Philips; Eindhoven: 207U-04
Threads: 1 | Posts: 9
Hallo liebe Sammlergemeinde,
ich habe hier lt. Typenschild eine Philips 207U, kann über dieses Gerät jedoch nirgends etwas finden. Schaltung Eingang und Mischstufe entspricht der 203 U, der Rest der 208U. Laut Typenschild holländische Fertigung.

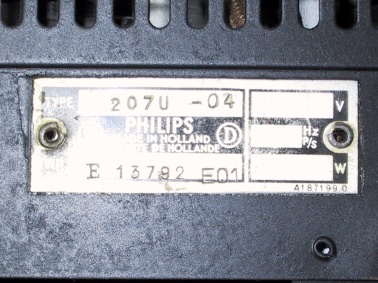

Ansicht und Typenschild siehe Photos.
Können die Philips-Experten weiterhelfen?
Gruß
Hans-Dieter Haase
Attachments
- NL_Philips_194x_207U (126 KB)
- Typenschild 207U (57 KB)
Hans-Dieter Haase † 5.2.18, 13.Jul.04
