• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1958/1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 96065

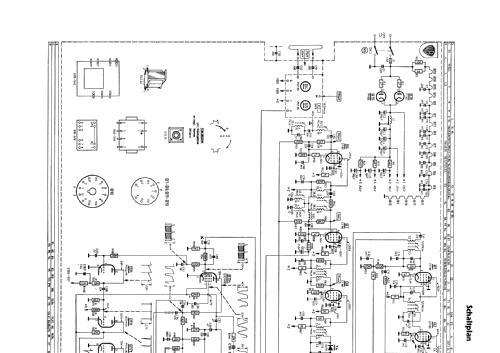

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• PCC88 PCF80 EF80 EF80 EF80 PCL84 PCF80 EF80 EF80 PCL82 ECH81 PCL82 PCF80 PL81 PY81 DY87 PY82 PY82 AW43-80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 21CA181U /04 Ch= S4/00 - Philips - Österreich

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Empfangsbereich: Band I + III, Kanal 2a - 4, 5 - 12.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
