• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1957/1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 95576

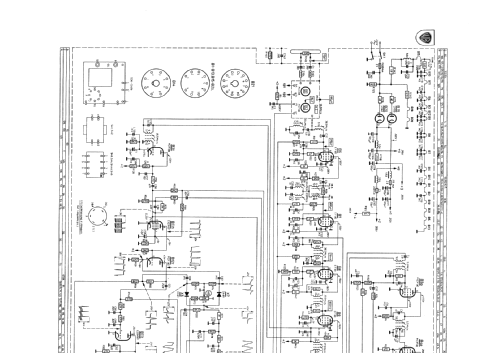

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCC88 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 PCF80 PCL82 PCF80 ECH81 PCL82 PCF80 PL36 PY81 DY87 UY82 UY82 AW53-80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 21TA144A /00 Ch= C3 - Philips - Österreich

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 590 x 640 x 570 mm / 23.2 x 25.2 x 22.4 inch

• Notes

• Empfangsbereich: Band I + III, Kanal 2a - 4, 5 - 12.

  Parallelgerät zum Horny WT2134A /00.

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
