2 Band Portable Radio 390 90AL390/00/00S
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1980 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 152085
Sammlung
Sammlung
Sammlung
Sammlung

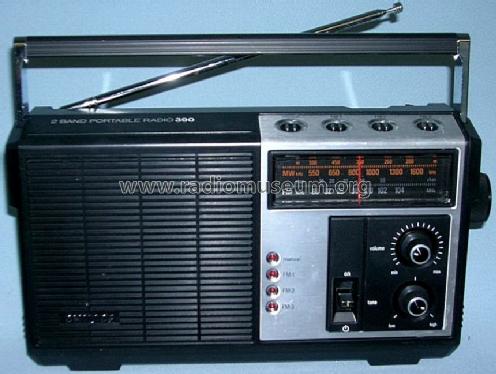

390 90AL390/00

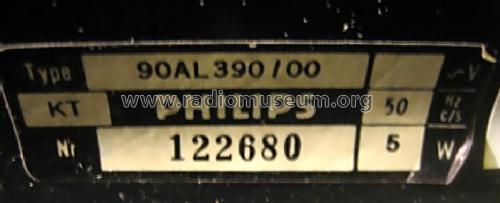

Typenschild
Rainer Rockel
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Semiconductors
- ED1402 ED1502 ED1602 ED1702 MPS9418 or. BC368 MPS9468 or. BC369 2SB324 or. AC128 MC14042 TBA570 1N60 MV2107 CDG00 CDG24 BA317 BZX79 1N4001
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220-240 /4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 2 Band Portable Radio 390 90AL390/00/00S - Philips - Österreich
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 265 x 140 x 75 mm / 10.4 x 5.5 x 3 inch
- Notes
-
2 Band Portable Radio 390 (90AL390/00S), drei FM-Sendespeicher mit Sensortasten abrufbar, FM 88 bis 104 MHz, MW 550 bis 1600 kHz, Tonregler, Teleskopantenne.
Made in Hong Kong.
- Net weight (2.2 lb = 1 kg)
- 1.1 kg / 2 lb 6.8 oz (2.423 lb)
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
