31RB560 /00
Philips, Svenska AB, Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Philips, Svenska AB, Stockholm
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 106110
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 31RB560 /00 - Philips, Svenska AB, Stockholm
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 550 x 175 x 190 mm / 21.7 x 6.9 x 7.5 inch
- Notes
-
AD3700/M06 double cone 6 W loudspeaker.
See also very similar B4S51A with different IF frequency and different antenna and phono input jacks.
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- Author
- Model page created by Peter Spies. See "Data change" for further contributors.
- Other Models
-
Here you find 240 models, 220 with images and 109 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips, Svenska AB, Stockholm
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Philips, Svenska AB,: 31RB560 /00
Threads: 1 | Posts: 1

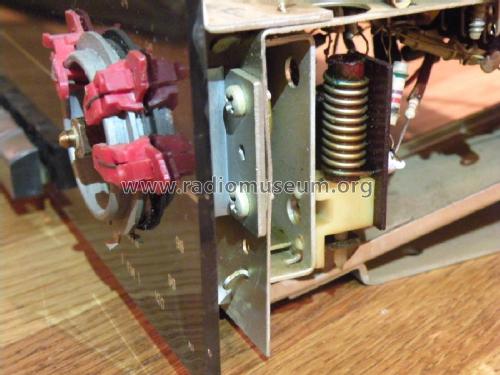

This table radio uses a mechanism that enables 3 programmable presets ("mechanische Programmvorwahl") for FM tuning. It is the same mechanism as is used in the "Mariette" portable FM-radios (L2D51T, B2S45T, 66RL260 and 66RL261) and in the "Musette" FM-record player (H3D55T). The red button that functions as an indicator can also used as AFC-switch.
Mick Metselaar, 11.Nov.19
