389AN

Philips USA

Data
Forum
Pictures
Collections

  • Year
  • 1946 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 85513

Click on the schematic thumbnail to request the schematic as a free document.

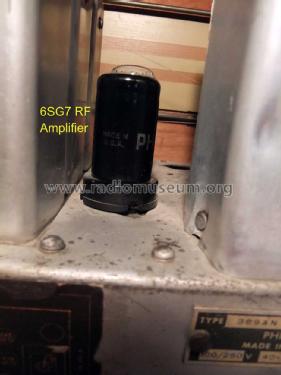

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 100-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Power out
  • 3.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 389AN - Philips USA
  • External source of data
  • Schematic sent by Mr. António Manuel Rodrigues dos Santos
  • Author
  • Model page created by Mario Coelho. See "Data change" for further contributors.

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Philips USA: 389AN

Threads: 1 | Posts: 1

I just copy here what a guest from Melbourne, Australia, has sent us via contact form:

Greetings,
I  was thrilled to 'find' yet another "Philips 389AN" via your website listing!
I thought mine was likely the only one in the world!  Mine is 'alive and well" however (indeed works very well) - and living in Australia!  It was brought here from Northern Ireland in 1961 and before that had ridden the ocean from "Southern Rhodesia" whereupon it was purchased in 1950! This particular unit was sold as the 'radio-audio amplifier' portion mounted within a rather exotic hand-carved  wooden cabinet  'radio-gram' combination.  The 'hand-carved cabinet' was unfortunately discarded in 1968 when I 'scored it' as a 14 year old lad upon its retirement by my late father after he purchased a 'new stereo' for the household. The '389AN' has served me well over the years as a 'ham radio' receiver (having had a BFO added) and indeed was the receiver I used for my first 'CW QSO' in 1981. Considering its 'domestic design limitations' (lack of band-spread and 'wide I.F band-width' - it works sufficiently for communications purposes and in fact most excellently for general short-wave reception.

Best Regards, Aubrey McKibben



Unfortunately it seems that we could only produce a picture from a catalog, folder or flier. Also a name plate, which could be from an auction ...

I don't know how complete or how much changed the set of this guest is, but perhaps we get some inside photos and/or name plate. I thank Aubrey - and will ask him.



Ernst Erb, 26.Jan.12
