• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152410

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

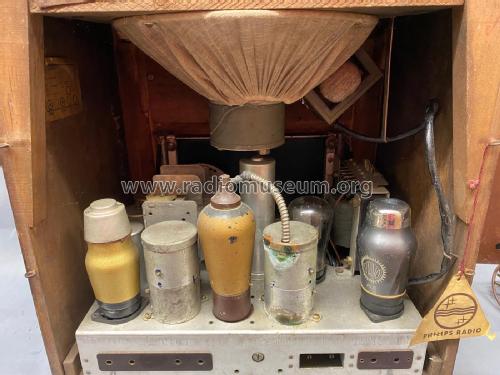

• Valves / Tubes
• AK2 E444 AL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; Reflex

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

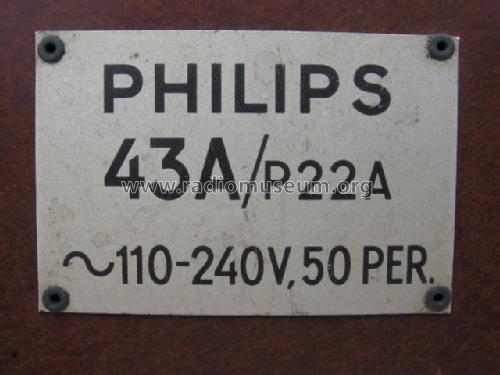

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

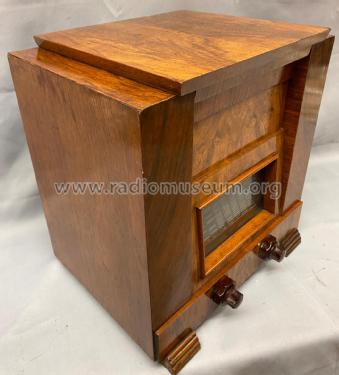

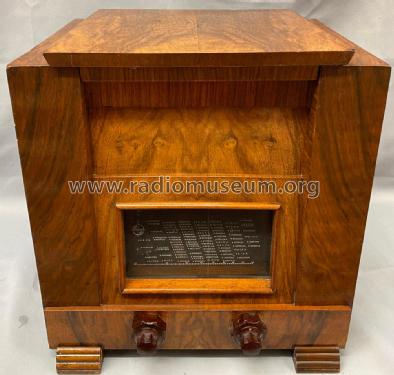

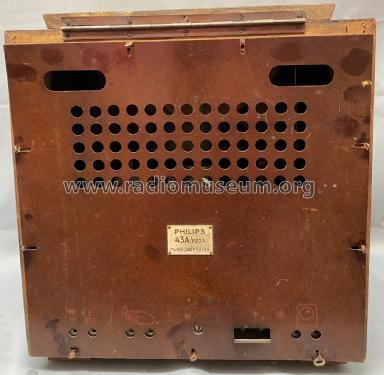

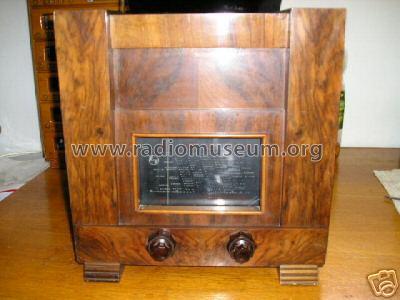

• Model: 43A/P22A - Philips - Österreich

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 350 x 370 x 250 mm / 13.8 x 14.6 x 9.8 inch

• Notes

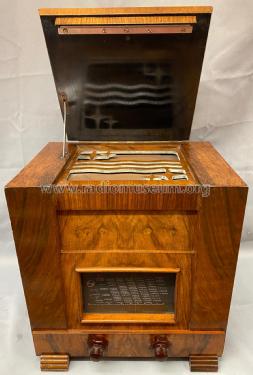

• Aufklappbarer Deckel für Schallreflexion.
  Eingangsbandfilter für MW+LW.
  ZF-Verstärker (E444) arbeitet in Reflexschaltung als NF-Vorstufe.

• Source of data
• -- Schematic

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
