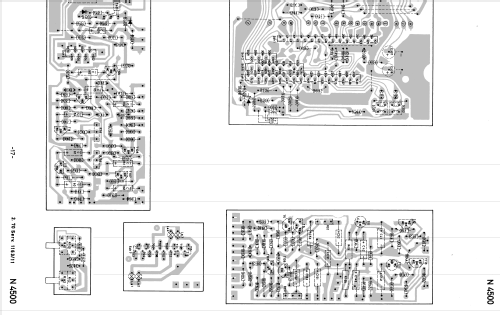

Philips - Österreich Maestro 4500 N4500/00 (1) Sammlung Albert Weiss

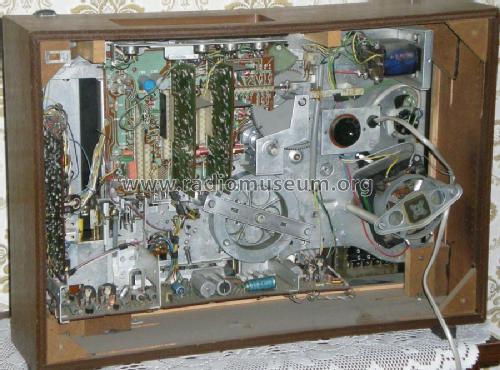

Philips - Österreich Maestro 4500 N4500/00 (2)

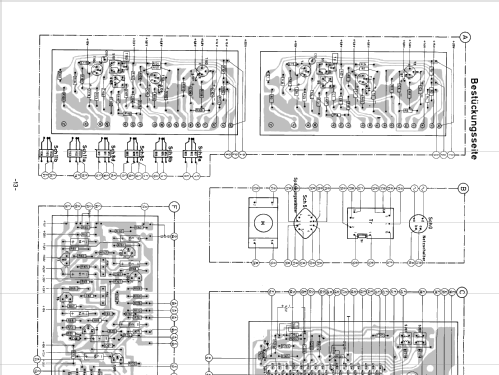

Philips - Österreich Maestro 4500 N4500/00 (1) Sammlung Albert Weiss

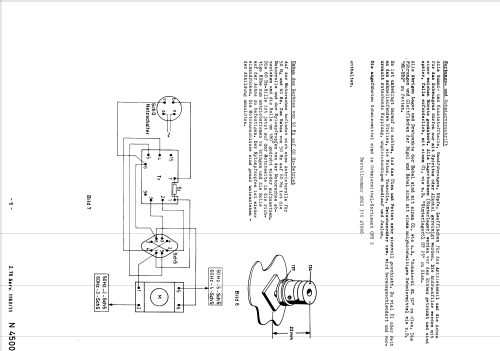

Philips - Österreich Maestro 4500 N4500/00 (2) Q: Philips Service

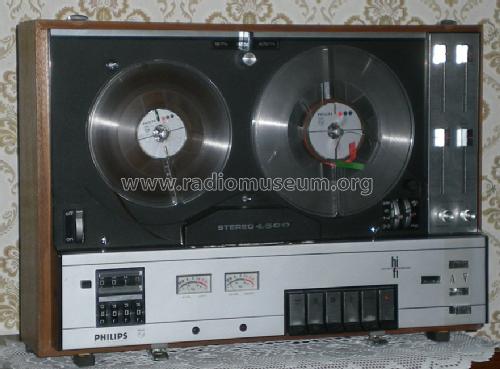

Philips - Österreich Maestro 4500 N4500/00 (1) Sammlung Albert Weiss

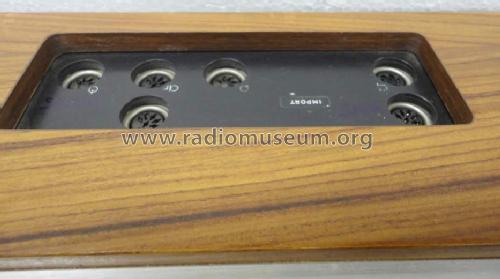

Philips - Österreich Maestro 4500 N4500/00 (1)
Philips - Österreich Maestro 4500 N4500/00 (1)
Philips - Österreich Maestro 4500 N4500/00 (1)
Philips - Österreich Maestro 4500 N4500/00 (1)
Philips - Österreich Maestro 4500 N4500/00 (1)
Philips - Österreich Maestro 4500 N4500/00 (1)

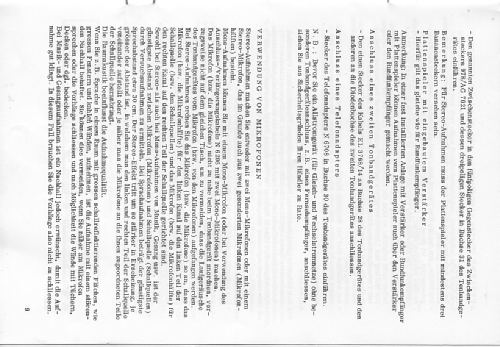

Philips - Österreich Maestro 4500 N4500/00 (2) Philips Bedienungsanleitung
Click on the schematic thumbnail to request the schematic as a free document.
Technical Specifications
Number of Transistors
Semiconductors present.
Semiconductors
Main principle
Audio-Amplification
Wave bands
- without
Details
Tape Recorder
Power type and voltage
Alternating Current supply (AC) / 110; 127; 220; 245 Volt
Loudspeaker
- For headphones or amp.
Material
Wooden case
from Radiomuseum.org
Model: Maestro 4500 N4500/00 - Philips - Österreich
Shape
Tablemodel, with any shape - general.
Dimensions (WHD)
490 x 340 x 180 mm / 19.3 x 13.4 x 7.1 inch
Notes
HiFi-Stereo-Vierspur. Bandgeschwindigkeiten: 4,75/9,5/19 cm/s; Spulen-Ø: 18 cm; Übertragungsbereich bei 19 cm/s: 40-18000 Hz. Kopfhörer-Verstärker eingebaut. Betrieb in horizontaler und vertikaler Lage möglich.
Parallelgerät zum Horny WM9138A/02.
