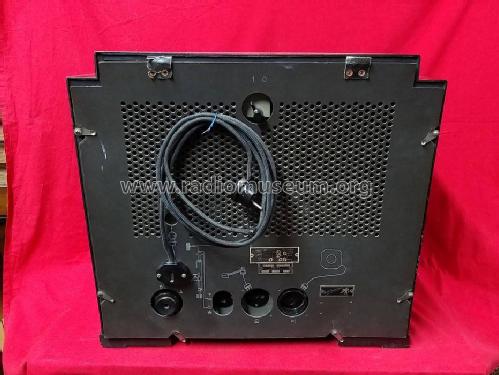

Multi-Inductance 536A

• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97955

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AF3 AK2 AF3 ABC1 AL2 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 115 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Multi-Inductance 536A - Philips France; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 460 x 320 mm / 19.3 x 18.1 x 12.6 inch

• Notes

• 3 gammes d'ondes : OC de 16.8 à 50.6 m, OM (ondes moyennes, PO) de 198 à 570 m, et OL (ondes longues, GO) de 750 à 2000 m. Anti-fading différé. Sélectivité variable. Indicateur visuel d'accord. Double cadran interchangéable.

  ---

  Das Philips Modell 536A hat variable Bandbreite und Feldstärke-Anzeige mit einem Transduktor (Saturable-core reactor). Siehe Ausführungen über das Prinzip, Kapitel 4.

• Price in first year of sale
• 2,850.00 FRF

• Mentioned in
• -- Original prospect or advert (Gamme 1936)

• Literature/Schematics (1)
• Schémathèque Toute la Radio (STR) (No. 307)

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
