- Country
- France
- Manufacturer / Brand
- Philips France; Paris
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 76449

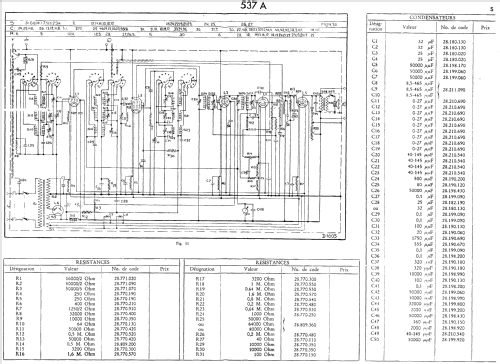

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 115 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

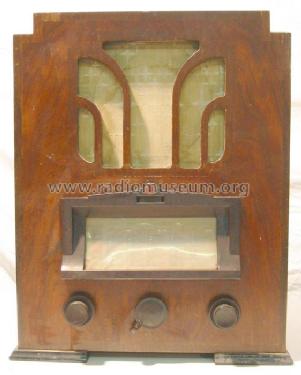

- Model: 537A - Philips France; Paris
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 380 x 480 x 260 mm / 15 x 18.9 x 10.2 inch
- Notes
- Indicateur d'accord à galvanomètre. Dial lamp: 2x 8046 (6V/0,5A).
- Price in first year of sale
- 1,875.00 F
- Source of data
- Les Radio PHILIPS de collection
- Author
- Model page created by Patrice Zeissloff. See "Data change" for further contributors.
