• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97961

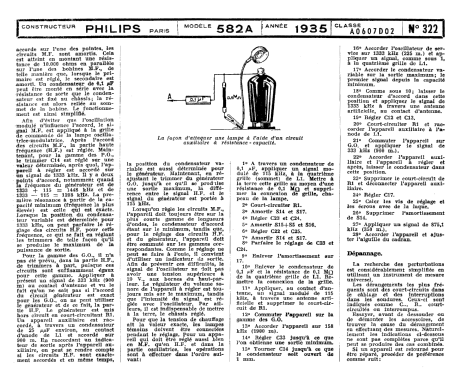

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AK1 AF2 AB1 E446 E443H 506

• Main principle
• Superheterodyne (common); ZF/IF 115 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands

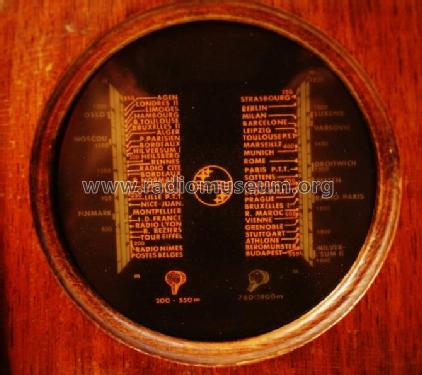

• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

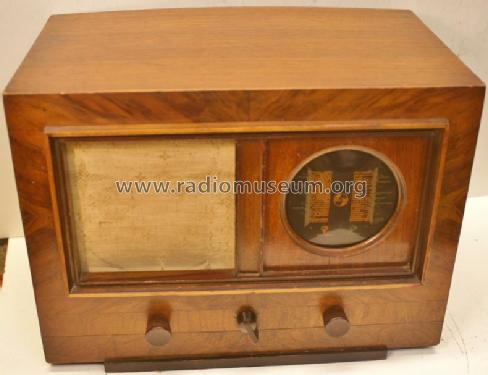

• Model: 582A - Philips France; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 380 x 285 x 230 mm / 15 x 11.2 x 9.1 inch

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Literature/Schematics (1)
• Schémathèque Toute la Radio (STR)

• Literature/Schematics (2)
• Le grand livre de la TSF (Doctsf Ref. 1862)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 617 models, 555 with images and 335 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips France; Paris
