- Country
- Great Britain (UK)
- Manufacturer / Brand
- Philips Electrical, Lamps, Industrial - Miniwatt; London
- Year
- 1949/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 117520
Advert 1949
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 100-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- from Radiomuseum.org
- Model: 681A/15 - Philips Electrical, Lamps,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 14 x 24.25 x 10.75 inch / 356 x 616 x 273 mm
- Notes
- 8 Bandspread Bands with 3 MHz I.F.
- Price in first year of sale
- 48.00 GBP
- Mentioned in
- Philips Service Manual, ServiceDept., Waddon Factory Estate, Purley Way, Croydon.
- Other Models
-
Here you find 426 models, 301 with images and 285 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips Electrical, Lamps, Industrial - Miniwatt; London
Forum contributions about this model: Philips Electrical,: 681A/15
Threads: 1 | Posts: 7
I have just added this new model to the collection. Before doing so I searched on the data base and by doing a tube search, with no result. I have been searching today on the web and have found that this set could be similar to the Mullard MAS231. I found the MAS231 on the Radiomuseum data base and they appear almost identical. This entry was submitted by Mario Huizinga. I have looked at his entry and on his website http://www.datastress.com/~mario/radio/types.php?group=600 and find these photos show two different radios. The pictures I have submitted come from an original Philips GB Service Manual so I think they should be the correct ones. I will gradually submit all the contents of the service manual, as time permits me. There are fifteen pages, plus a large pull out sheet of the full circuit diagram (schematic) and of the components layout.
My best regards to all
John C.
Attachments
- 681A Front (83 KB)

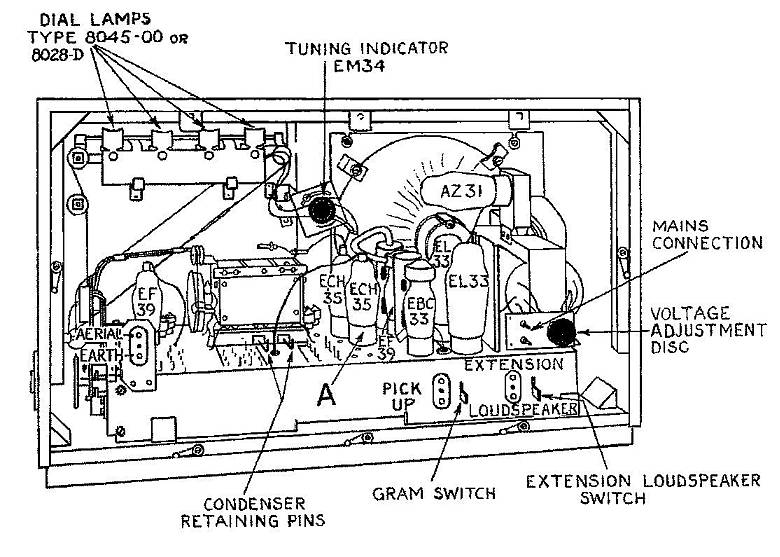

- Drawing 681A Rear (92 KB)
John Carter, 11.Jul.07
