- Country
- Sweden
- Manufacturer / Brand
- Philips, Svenska AB, Stockholm
- Year
- 1945 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 352340
Advert in Vecko-Journalen 1945.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- AC/DC-set / AC (25-50 Hz) & DC: 120; 135; 160; 225 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 849U - Philips, Svenska AB, Stockholm

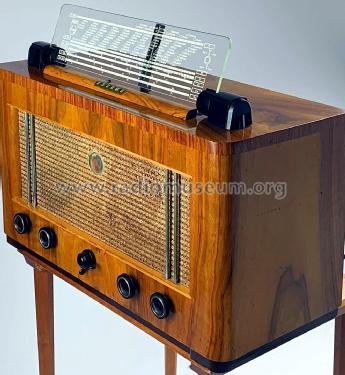

- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 570 x 320 x 250 mm / 22.4 x 12.6 x 9.8 inch
- Notes
-
Wavebands:
- LW 710 - 2000 metres
- MW 190 - 590 metres
- SW1 16.6 - 50.5 metres
- SW2 31 metre band - 9.4 to 9.9 MHz
- SW3 25 metre band - 11.6 to 12.1 MHz
- SW4 19 metre band - 15.1 to 15.83 MHz.
- Mentioned in
- -- Original prospect or advert (Vecko-Journalen, 1945)
- Author
- Model page created by Clive Forder. See "Data change" for further contributors.
